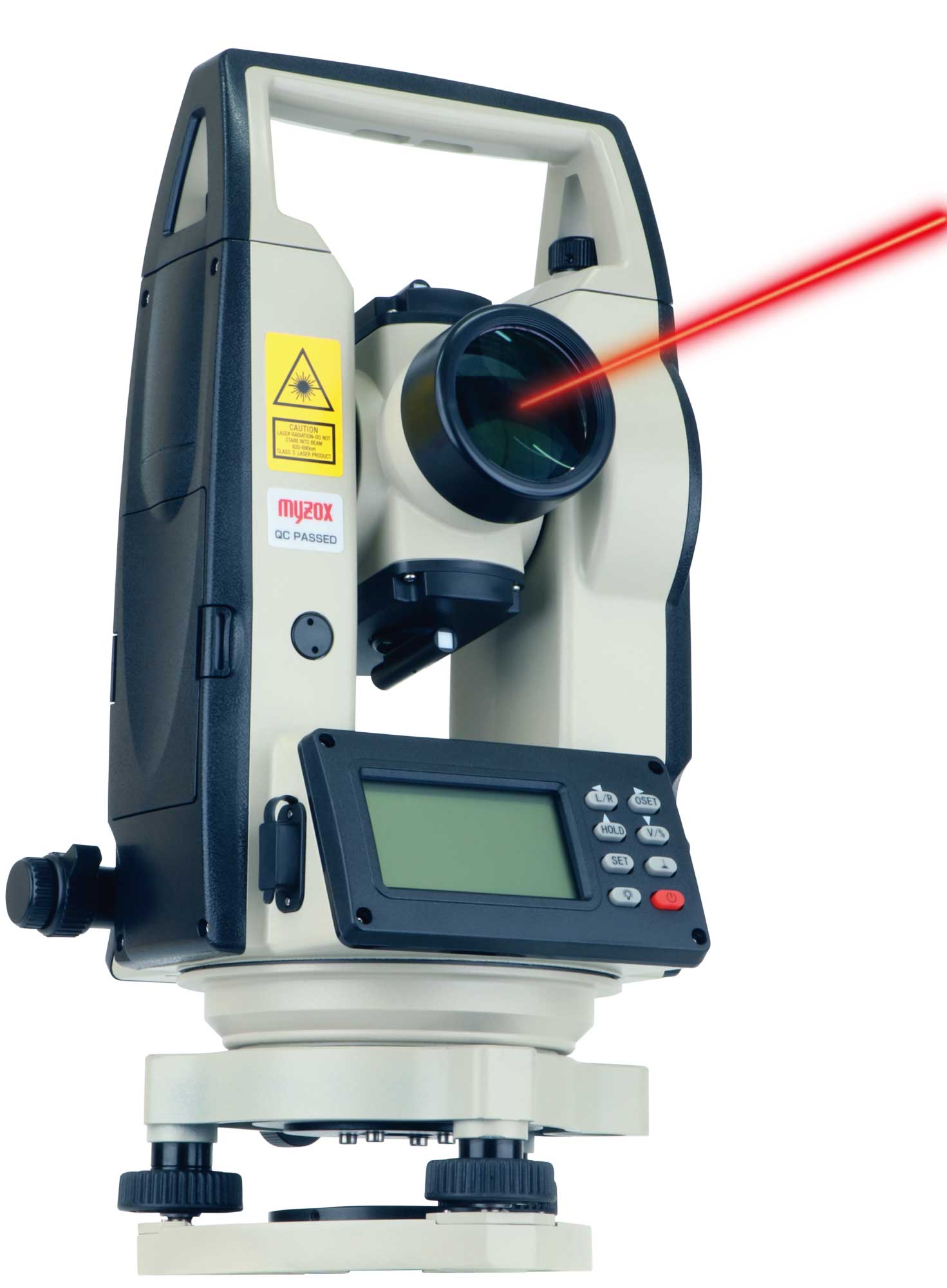

Digital Theodolite with Laser Guide
  • Leaflet

DTC-LG1

PIN POINT PRECISION - GUIDED BY LASER

Efficient operation with laser guide.

FEATURES

  • Magnification 26.5x

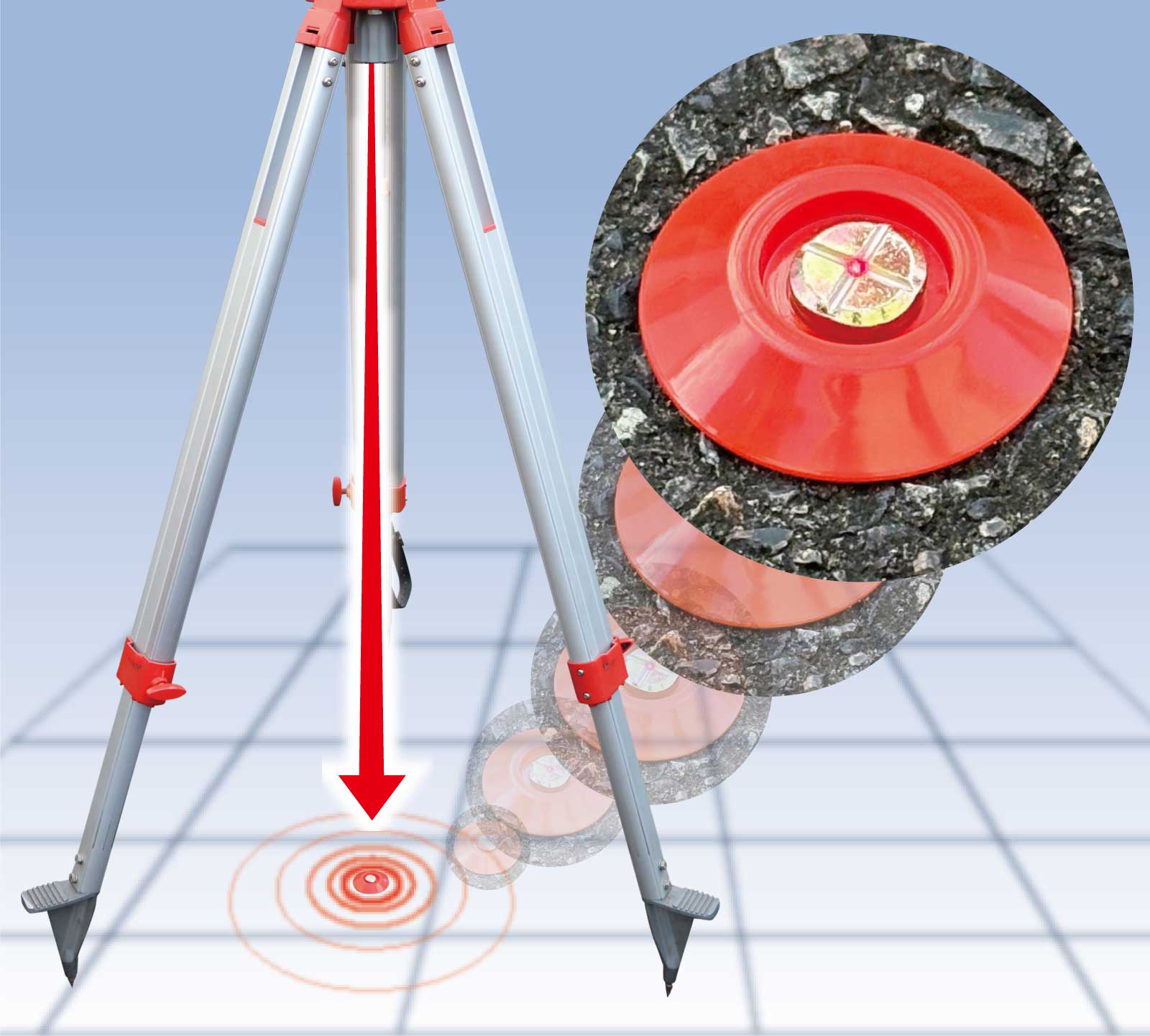

  • Laser plummet

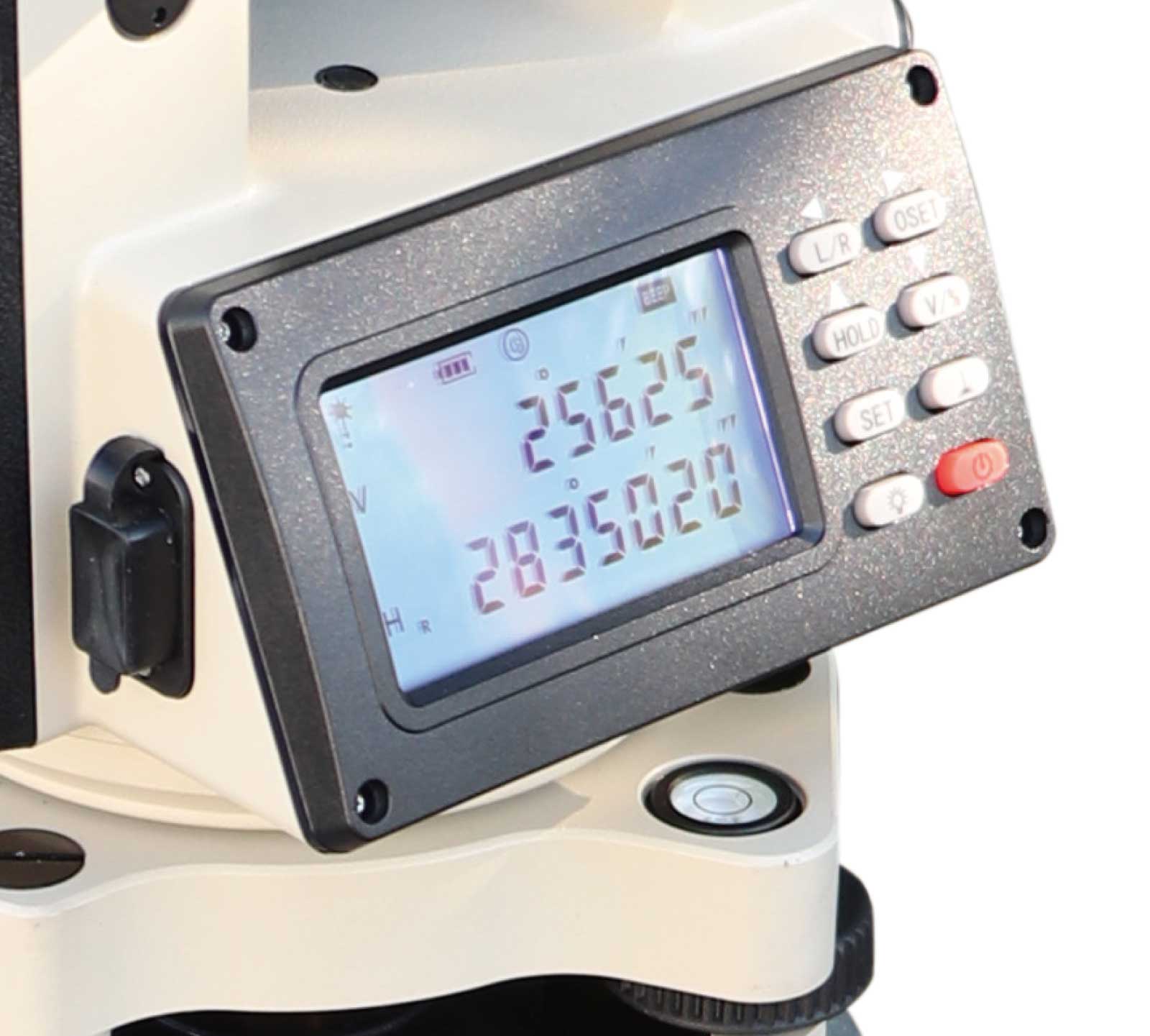

  • Large LCD with backlight

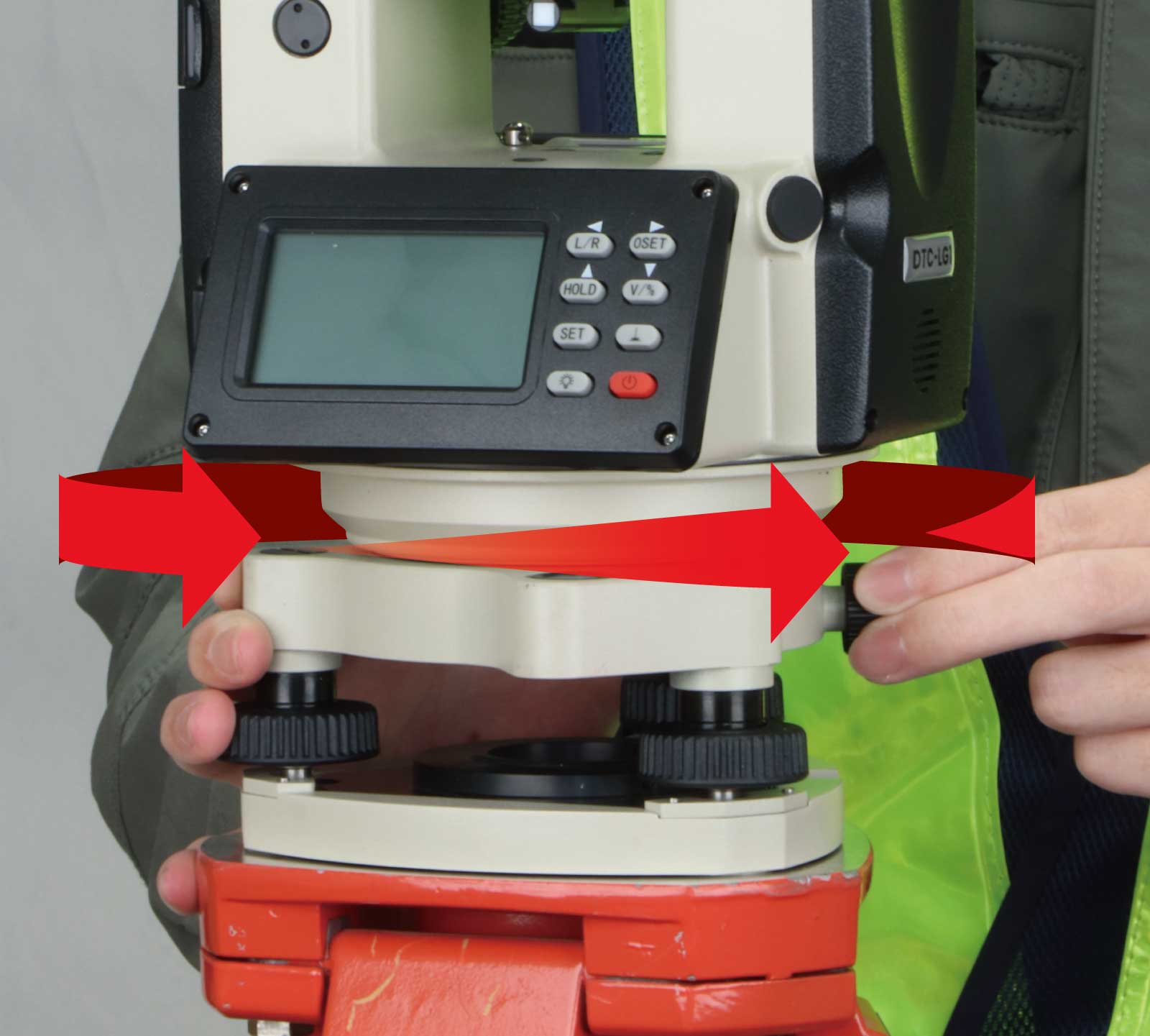

  • Shifting-type tribrach (35mm screw type only)

  •

  • EFFICIENT OPERATION WITH LASER GUIDE

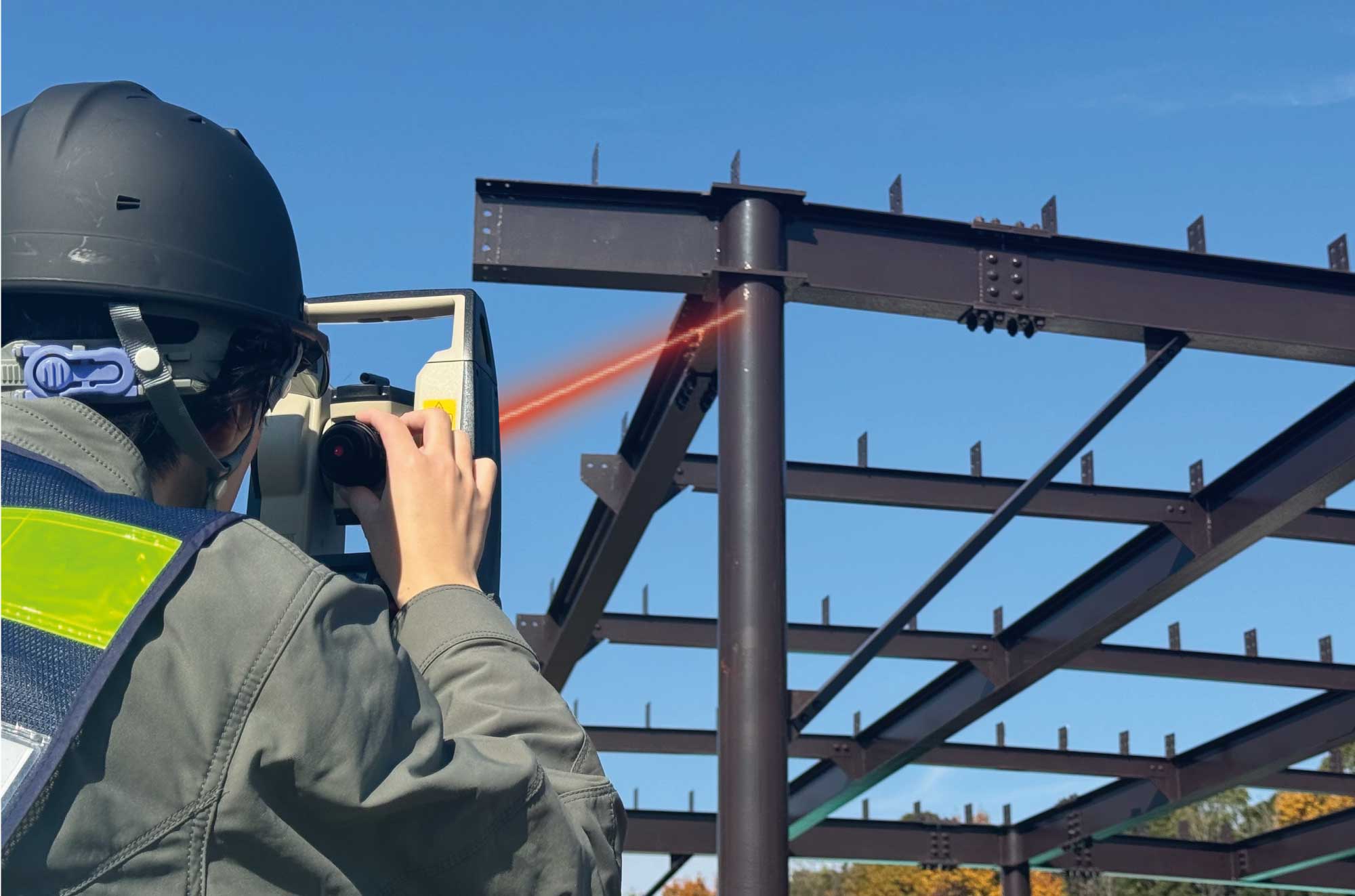

    The laser guide allows quick spotting of the target before viewing through the telescope, improving aiming efficiency.
    The visible laser spot can also be confirmed by nearby workers, enabling easy sharing of the target.

SPECIFICATIONS

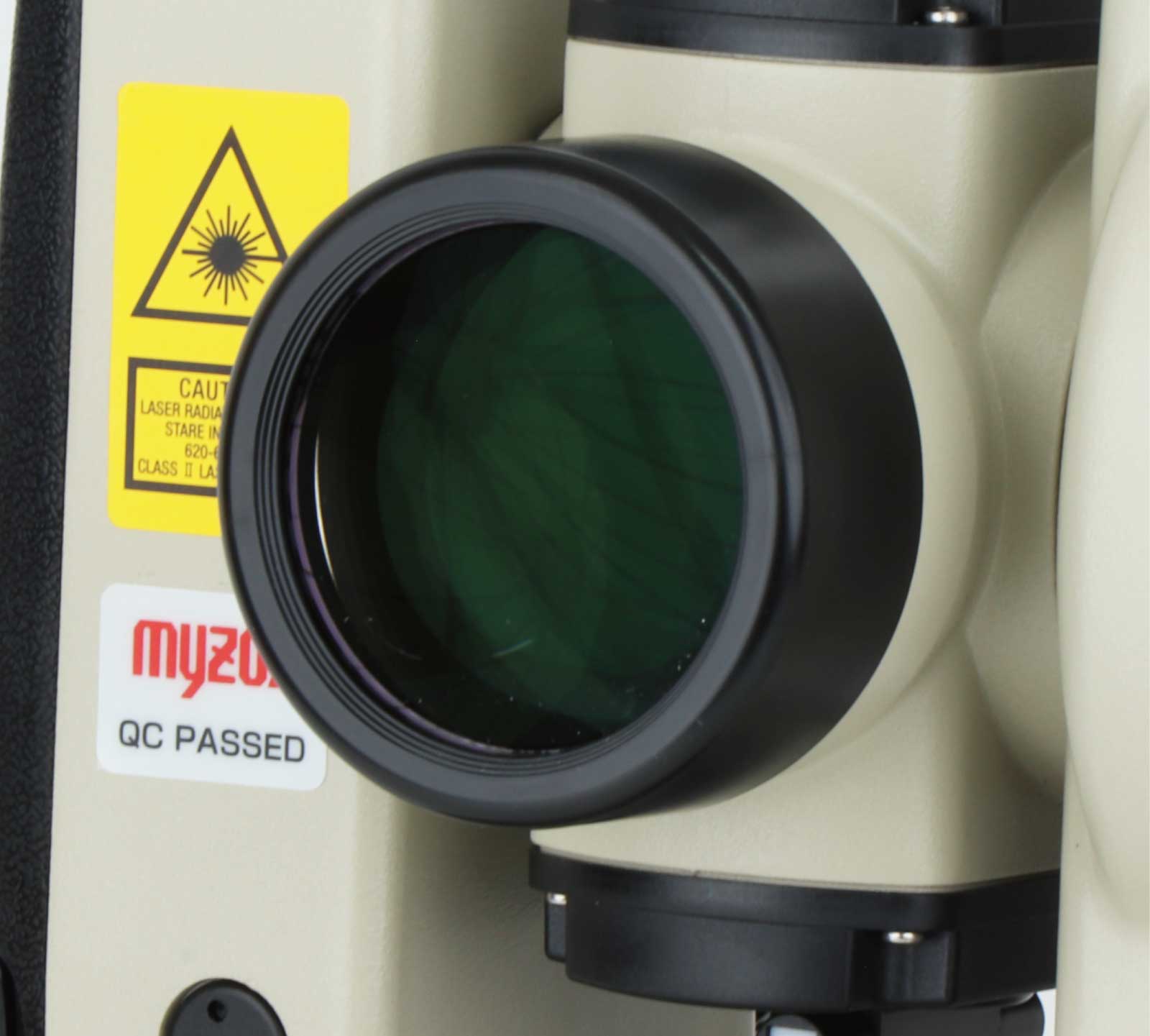

Telescope
Image Erect
Aperture
 40mm
Magnification 26.5x
Resolution 3"
Field of view 1°30’
Minimum focus 1.5m
Stadia ratio 100 ⁄ 0
Laser
Wavelength 635 ±20nm
Laser class class 2
Collimation error ≤10"
Wavelength 635 ±20nm
Plummet
Type Laser (class 2)
Accuracy ±1.5mm/1.5m
Diameter ±2.5mm/1.5m
Wavelength 635 ±20nm
Operating temperature -20 ∼ + 50°C
Operating time approx. 8h (with laser on)
Minimum reading 5" ⁄ 10"
Angle measurement accuracy 5"
Display Dual-sided
Tubular level 30" ⁄ 2mm
Circular level 8’ ⁄ 2mm
Dust & Water resistance IP54
Power

AAA alkaline battery × 4
Li-ion battery
Tribrach Detachable (5⁄8 inch model)
Undetachable (35mm model)
Dimensions 165 × 160 × 340mm
Weight 4.5kg
Selectable screw size 35mm　⁄　5⁄8 inch female screw

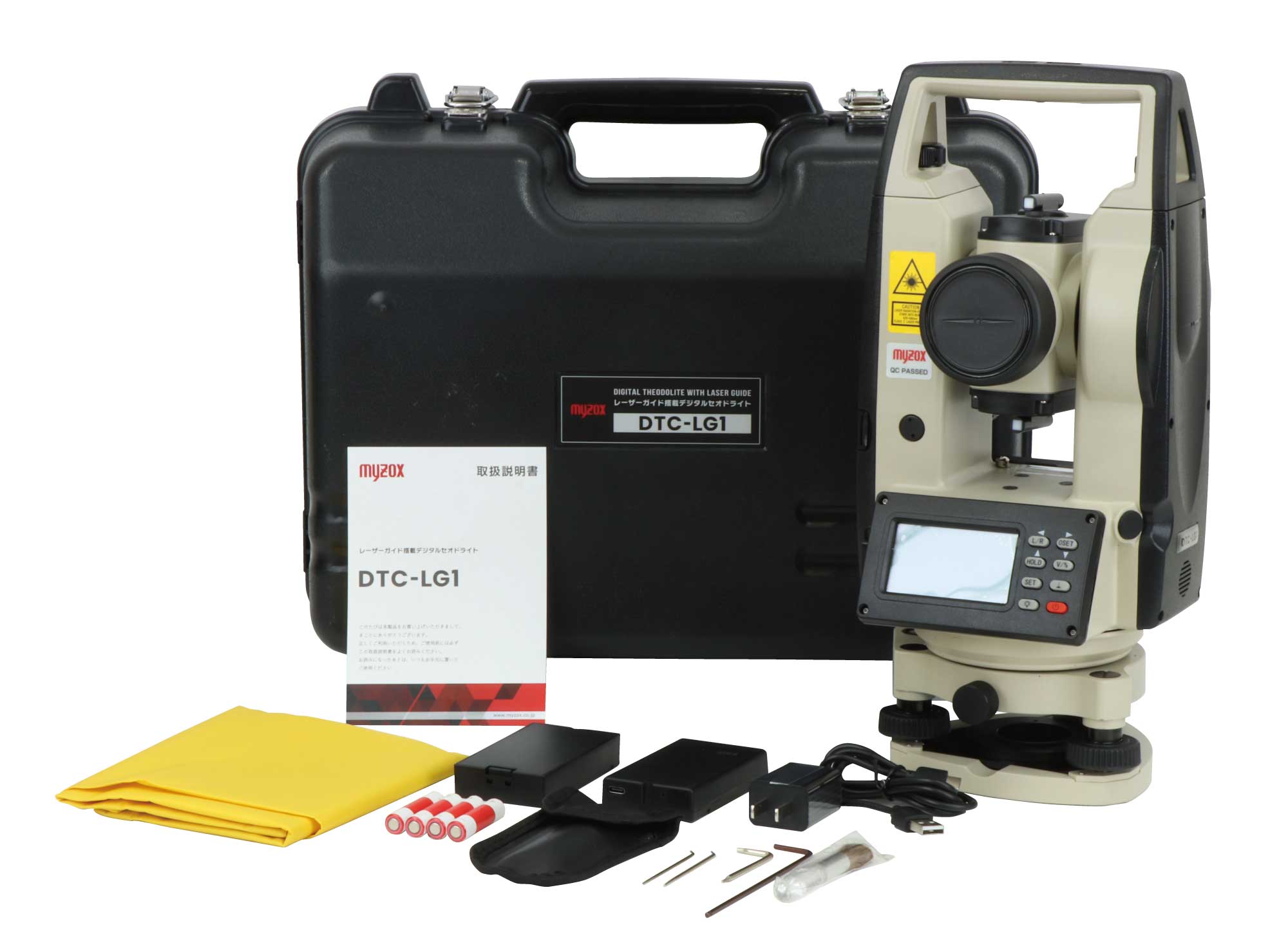

STANDARD ACCESSORIES

  • ⋅Carrying case
  • ⋅Lens cap
  • ⋅AAA alkaline batteries x 4
  • ⋅Tool kit
  • ⋅Battery box for dry batteries
  • ⋅USB cable (Type A - Type C)
  • ⋅AC adapter for charging
  • ⋅Rain cover
  • ⋅Manual
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Digital Theodolite with Laser Guide ⁄ 35mm female screw DTC-LG1 1 1 226256 CN
Digital Theodolite with Laser Guide ⁄ 5⁄8 inch female screw DTC-LG1 U 1 1 226257 CN
