LASERS
Line Lasers

REAL GREEN LINE LASER G-110SR

■Features
1. Light & Compact body
2. Water & dust resistance IP54
3. Shoe rubber cap

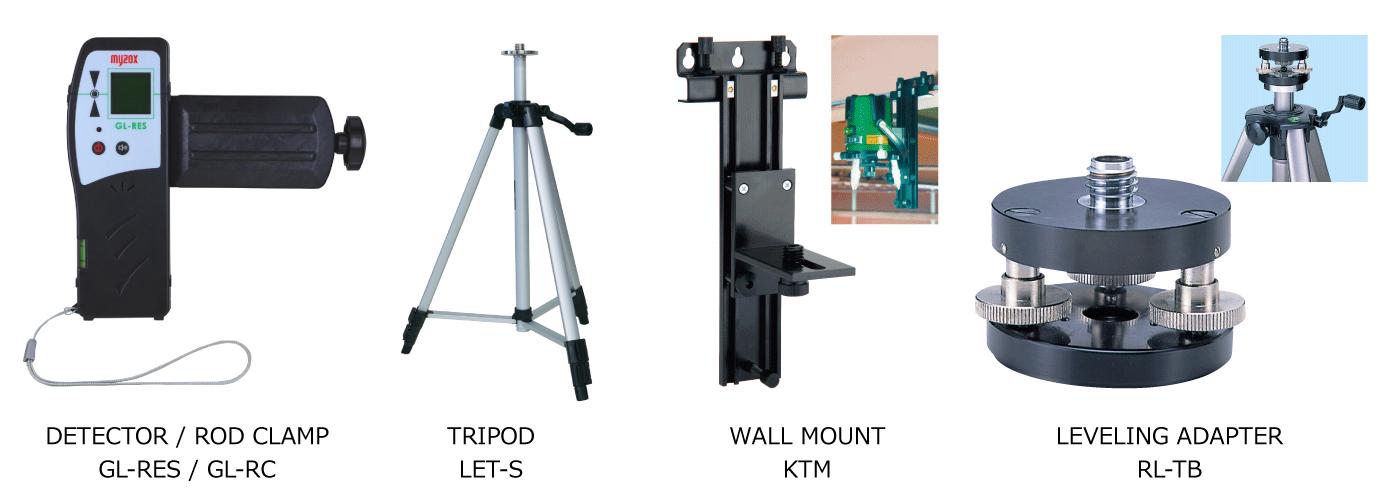

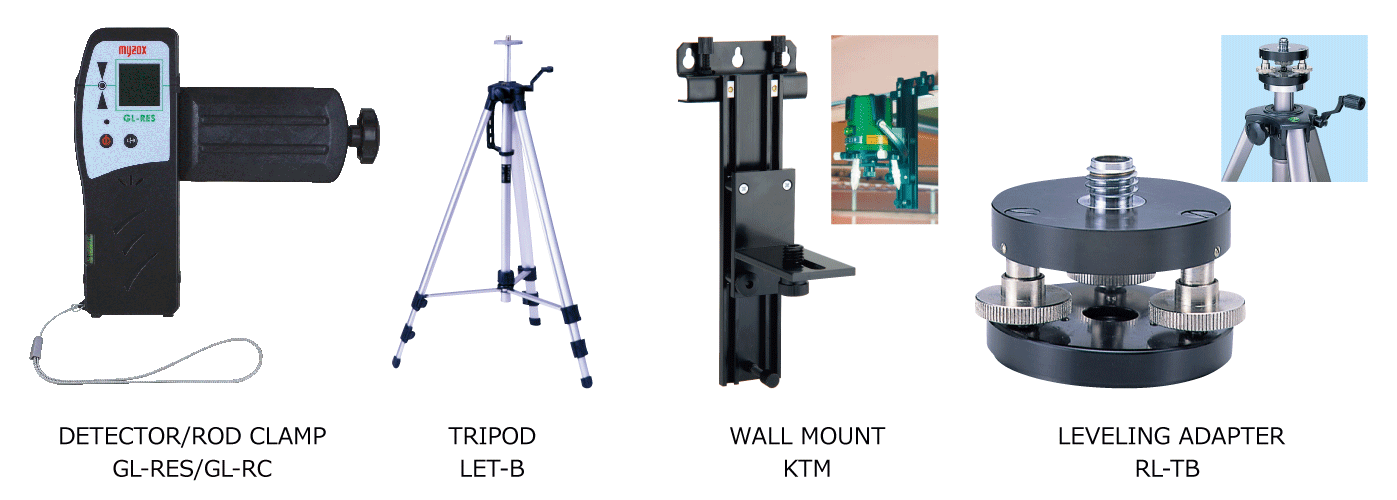

OPTIONAL ACCESSORIES

SPECIFICATIONS
Code No. 222742
Model G-110SR
Laser source Visible green laser
Wavelength

510 ~ 520nm / Line

650nm / Down point

Line width Less than 2.5mm per 5m
Accuracy for H/V line ±1.0mm/7.5m
Accuracy for down point ±1.0mm/1m
Down point diameter ±1.5mmφ/m
Leveling 2-Axis gimbal system
Self leveling range ±1.5°
Power

AA alkaline battery x 4

Operating Time(all lines) approx. 4h
Operating Temperature -5 ~ +40°C
IEC Laser Class 2M
Dimensions L110 X W115 X H165mm
Weight(without batteries) approx. 750g
IP Protection IP54 (except for battery box)



STANDARD ACCESSORIES


-Carrying case

-Shoe rubber caps

-Manual
