LASER SCANNER SPHERE
  • Leaflet

■Features
1. For target above reference points
 and point clouds registration
2. Not to worry about the target angle
3. Comes with 2 adapters for various use
4. 2 size selectable
5. Operation confirmed :
 FARO, Leica RTC360, Trimble X7



Features

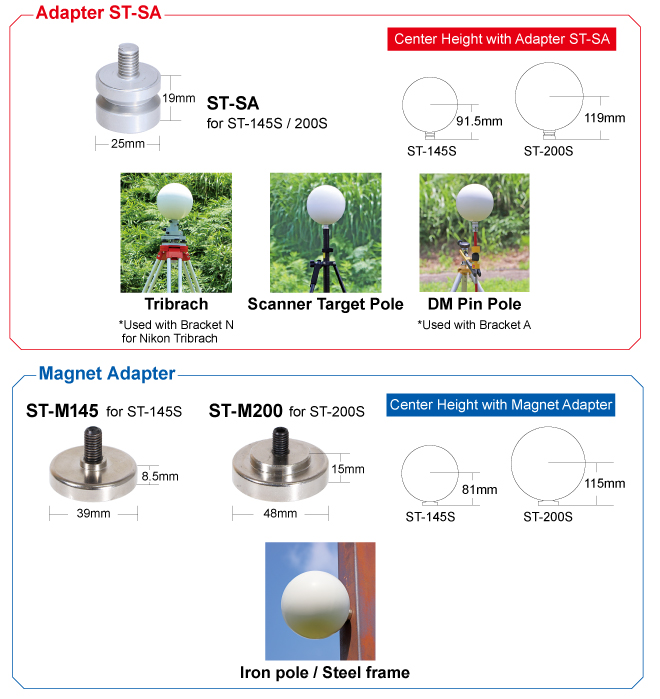

Comes with  2 adapters for various use

Specifications

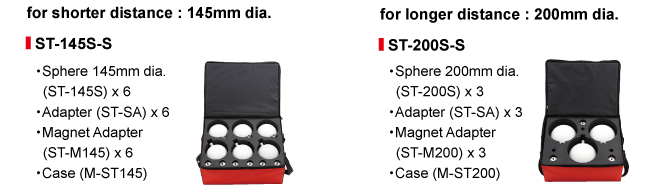

Set Contents

Code No. Product Name Model Size
224656 Sphere 145mm dia. Set ST-145S-S 145mm dia. x 6pcs
224657 Sphere 200mm dia. Set ST-200S-S 200mm dia. x 3pcs
224658 Sphere 145mm dia. / 1pc ST-145S 145mm dia.
224659 Sphere 200mm dia. / 1pc ST-200S 200mm dia.
224949

Adapter

ST-SA 25mm dia. x 19mm
224950 Magnet Adapter for 145mm ST-M145 39mm dia. x 8.5mm
224952 Magnet Adapter for 200mm ST-M200 48mm dia. x 15mm
224951 Replacement Case for 145mm M-ST145 530 x 410 x 250mm
224953 Replacement Case for 200mm M-ST200

530 x 410 x 250mm
