DIGITAL ANGLE LEVEL -DIGILEVEL V series-

■Features
1. Built-in magnet
2. Auto digit inversion
3. V-groove base
4. 0/90°beeper function0/45/90°
5. Hold function
6. Self-calibration
7. 0 setting (relative measurement)

  • Leaflet

Features


Specifications
Unit degree(°)・slope(%)・mm/m
Measuring range 4 x 90° (0~360°)
Resolution

0.05°　・　0.08% ・1mm/m
Reading accuracy ±0.1°(0°/90°)　±0.2°(Other)
Tubular bubble accuracy ±1.0mm/m
Water & dust resistance IP54
Operating temperature 0 ~ 40°C
Storage temperature -10 ~ 50°C
Power

AAA alkaline battery x 2 (sold separately)

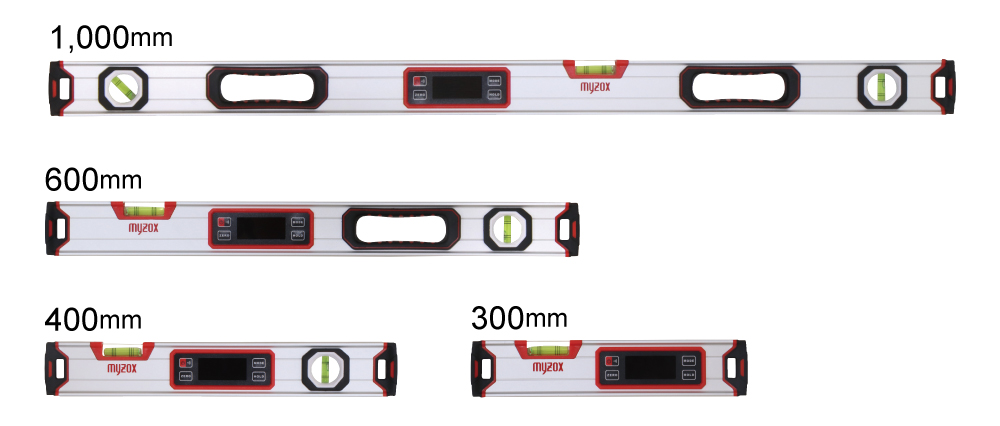

Size (300 / 400 / 600 / 1,000) x 28 x 62.5mm
Weight 381g / 538g / 749g / 1,165g
