SURVEYING ACCESSORY   ▸   Surveying Nail & Marker

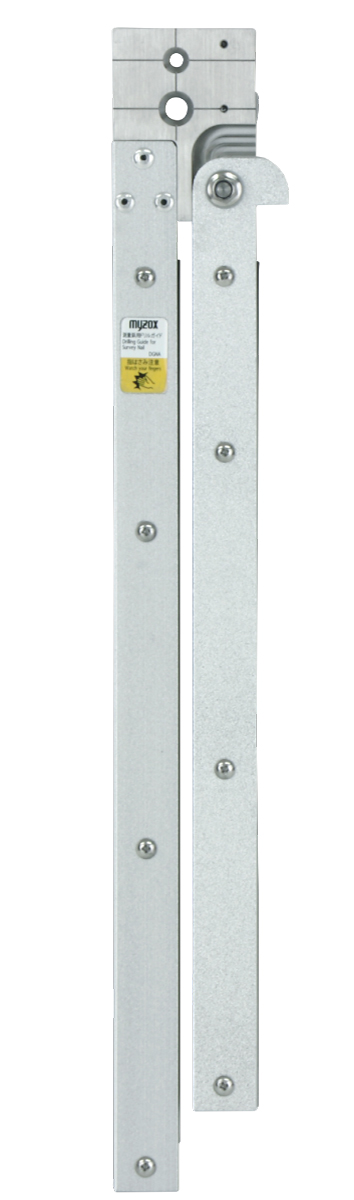

Drilling Guide for Survey Nail
  • Leaflet

DGNA

DRILL WITHOUT SLIPPING

A simple, effective guide to keep your drill bit on target.

HOW TO USE

1. Mark a point or a line on the asphalt or concrete where you want to drive in the survey nail.

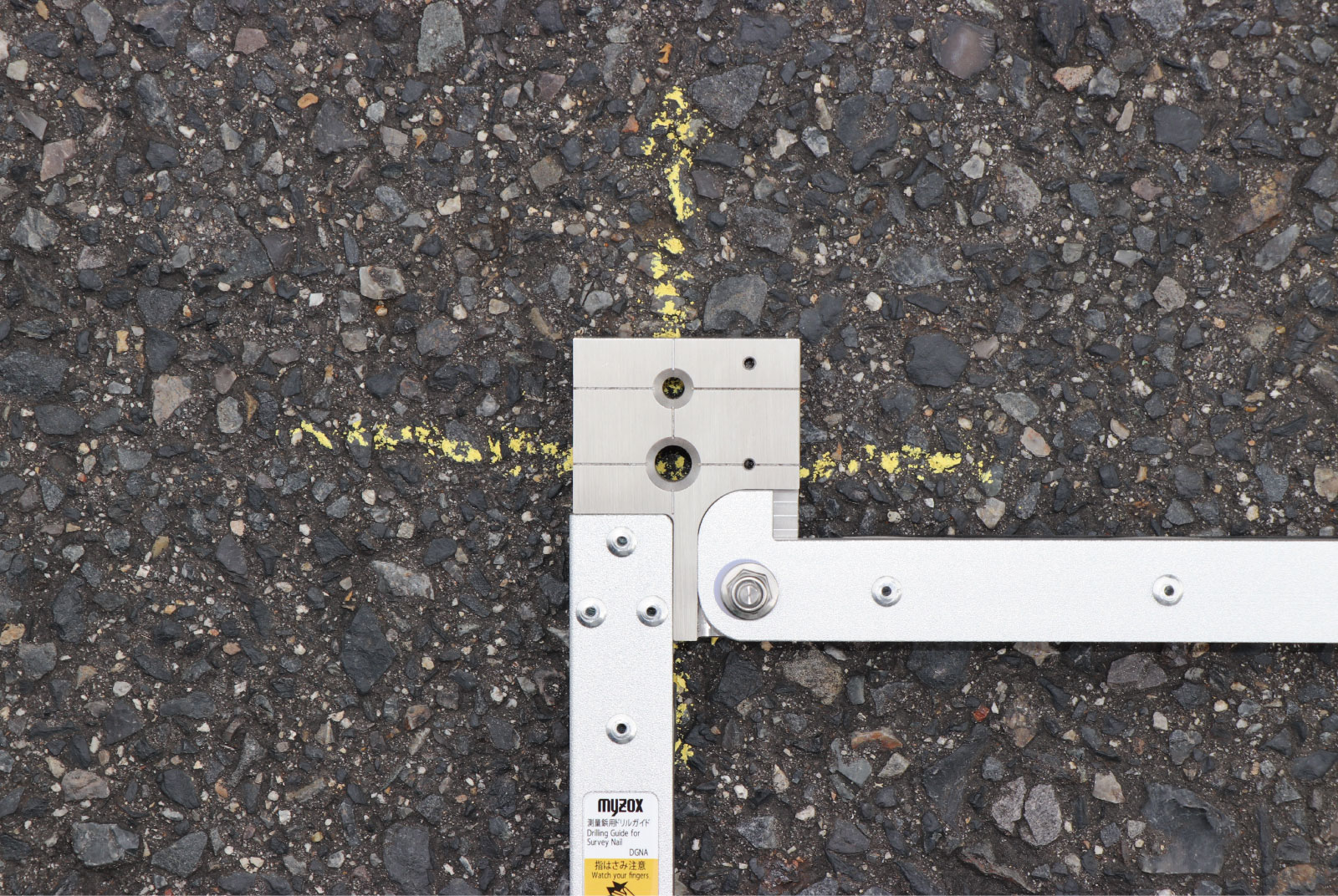

2. Open the movable bar to the fitting angle to match your footing, and align the small or large hole with the intersection of the marked point or lines.

3. Step on the fixed bar and movable bar and make sure not to move the main body, then use a drill to make a pilot hole.

  • LIGHT SLOT

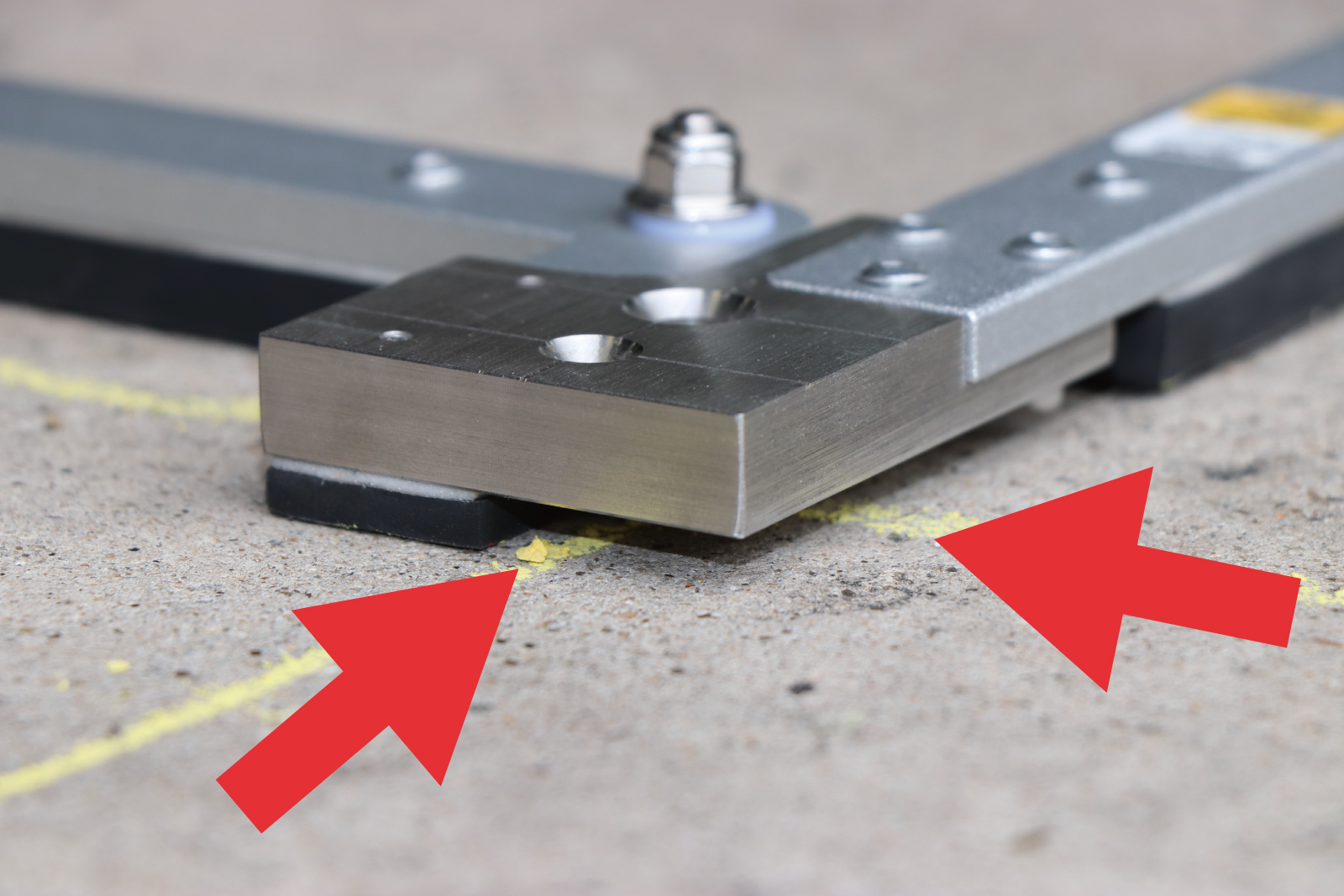

    Light enters from the direction of the arrows, making it easier to see the marked spots and align the holes.

SPECIFICATIONS

Hole diameter S : φ4.5mm   L : φ7.3mm
Compatible drill bit S : φ3.5~4.3mm   L : φ6.5mm
Compatible nail S : φ4/φ5mm   L : φ7mm
Maximum opening angle 90°
Dimensions 55×365×22*mm  *Including screw and nut height
Weight 600g
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Drilling Guide for Survey Nail DGNA 1 10 226106 CN
