POLE   ▸   DM Pin Pole

DM Pin Pole 6mm dia.

DM6 series

FOR 360 DEGREE PRISM

Dedicated to Topcon Sokkia prisms.

  • DM6-830/830R
    830mm

  • DM6-740/740R
    740mm ⁄ 2sec.

  • Pole diameter

  • Shoe part structure

  • Groove & red line

FEATURES

⋅ 4 models selectable
- DM6-830 : Verticality & Wide slide range
- DM6-740 : Portability (Storable in Topcon Layout Navigator LN-150 carrying case)
- DM6-830R : DM6-830 + Prism height indicated
- DM6-740R : DM6-740 + Prism height indicated

  • CONNECT φ6mm & φ9mm PIN POLE

    Connect φ6mm and φ9mm pin pole with DMP-6ADP, you can set the prism at high position to work efficiently when working in different height or with obstacles.
    *φ9mm pin pole is not included.

  • PRISM HEIGHT 100mm

    Able to set at the same prism height with ATP1S ⁄ ATP1SII ⁄ ATP2S ⁄ ATP2SII.(at the lowest point)

  • PRISM HEIGHT INDICATED (830R / 740R)

    Due to markings every 100mm, it can be set up quickly and accurately.
    *The numbers indicate the height of the prism center, not the actual height.

  • PORTABILITY (740 / 740R)

    Storable in Topcom Layout Navigator LN-150 carrying case.

SPECIFICATIONS

MODEL DM6-830DM6-830R DM6-740DM6-740R
Length 830mm 740mm / 2sc. (375+365mm)
Groove at every 50mm
Red line at every 100mm
Prism height indicated - every 100mm - every 100mm
Weight 195g 175g
Material Stainless
Pole diameter φ6mm
Accessories Case -

Adapter

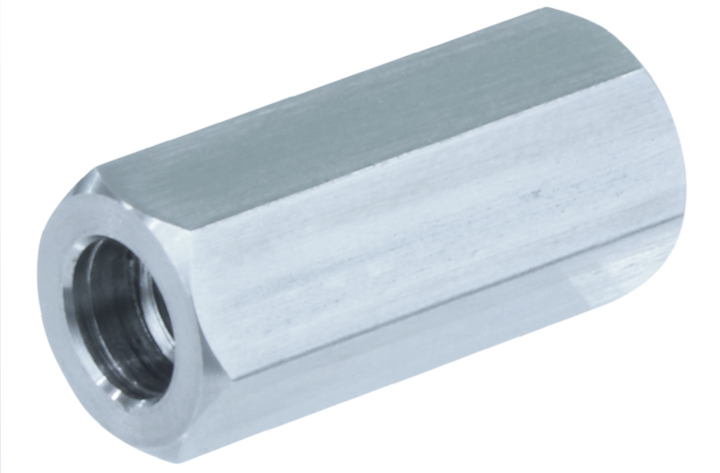

DMP-6ADP

M5 female for φ6mm pin pole
M6 female for φ9mm pin pole
PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
DM Pin Pole 6mm dia. ⁄ 800mm
 DM6-830 1 10 225965 JP
DM Pin Pole 6mm dia. ⁄ 800mm / with Prism Height Graduation
 DM6-830R 1 10 225967 JP
DM Pin Pole 6mm dia. ⁄ 710mm
 DM6-740 1 10 225966 JP
DM Pin Pole 6mm dia. ⁄ 710mm / with Prism Height Graduation
 DM6-740R 1 10 225968 JP
DM Pin Pole 6mm dia. Adapter
 DMP-6ADP 1 10 223450 JP
Replacement Shoe
 DMP-50 1 10 101919 CN
