Laser Scanner Target
  • Leaflet

MOST POPULAR TYPE 6 INCH TARGET

Constant at crosspoint 0mm.

FEATURES

Easy to set the target at
directly opposite to scanner

The target is adjustable at any angles in vertical and horizontal.
Constant loading to rotation axis can fix
the angle without a fixing screw.
The crosspoint is arranged on the the
central axis line, it brings stable accuracy.

Portability

The case M-STC can store ST-6 × 3pcs,
or ST-6 × 2pcs with tribrach & adapter.

Versatility

Able to use with the poles and the tripods
with tribrach by 5 ⁄ 8 inch screw.

SPECIFICATIONS

Target diameter 6inch (152.4mm)
Crosspoint height 215mm
Screw (bottom) 5 ⁄ 8 inch female
Weight (target) approx. 400g ⁄ 1pc
Weight (case) approx. 500g

*The crosspoint height with tribrach adapter TAR is compatiblewith Leica P-series.

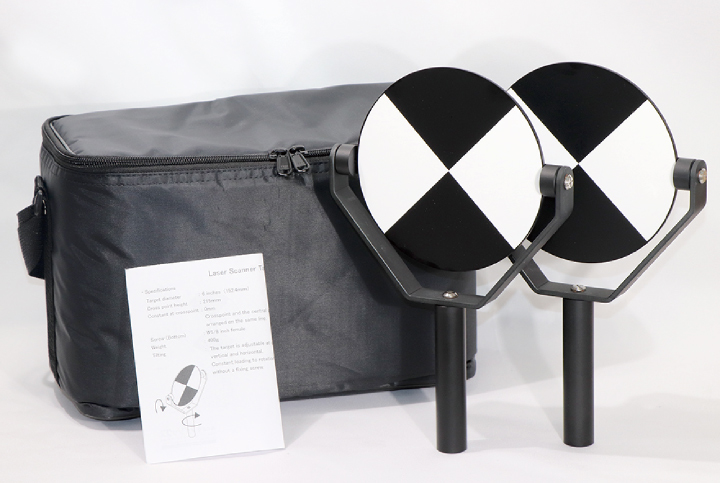

SET CONTENTS (ST-6S)

  • ⋅6 inch target (ST-6) × 2
  • ⋅Case (M-STC)
  • ⋅Manual

OPTIONS

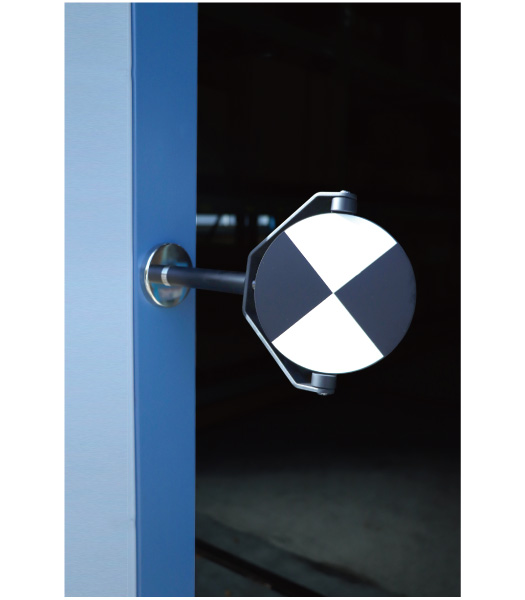

for Steel frame

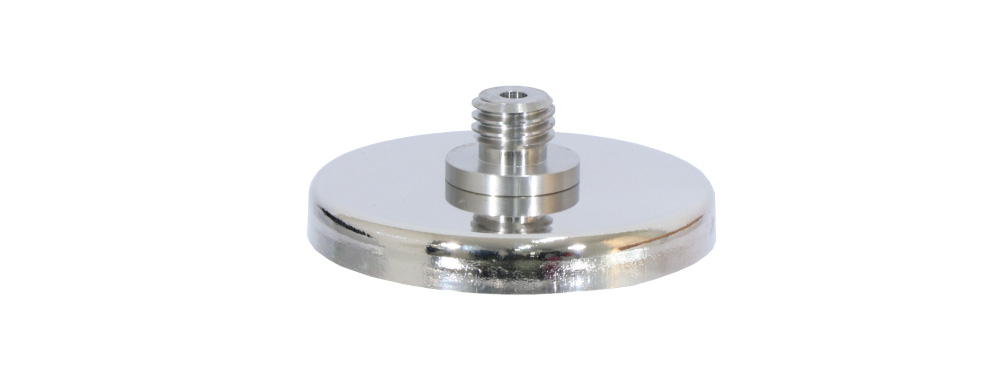

Magnet Mount

ST-MAG

Screw (top) 5 ⁄ 8 inch male
Crosspoint height +15mm
Dimensions φ76 × 27mm

for Tripod use

Tribrach with Optical Plummet

MY011BO

Material Aluminium
Circular level 8’ ⁄ 2mm
Locking screw 5 ⁄ 8 inch female

Tribrach Adapter

TAR

Dimensions approx. 97 × 79 × 63mm
Weight approx. 565g
with removable center with lock

for Pole use

Carbon Fiber Pole RCP-260 + Bipod BIP-180

PRODUCT NAMEMODELPKG QTYMOQCODE NO.C/O
Laser Scanner Target Set ⁄ 2 targets ST-6S 6 6 223447 JP
Laser Scanner Target ⁄ 1pc ST-6 1 10 223464 JP
Magnet Mount ST-MAG 1 10 223736 CN
Case for Laser Scanner Target M-STC 6 6 223465 CN
Tribrach with Optical Plummet MY011BO 1 10 240003 CN
Tribrach Adapter with Removable Center TAR 1 10 240041 CN
Carbon Fiber Pole ⁄ 2.6m RCP-260 10 10 218828 CN
Bipod / 180cm BIP-180 4 4 217426 CN
