2.5 inch Prism Systems

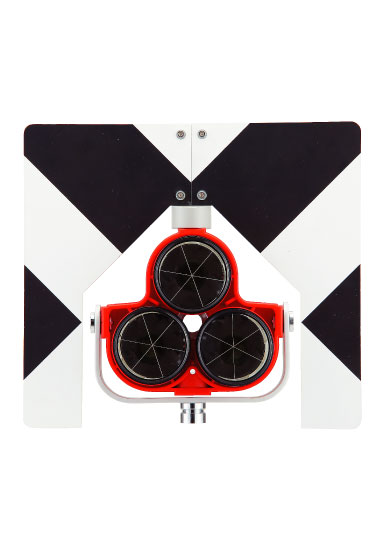

2.5 INCH (63.5mm) TRIPLE PRISM TG-2500 series

■Features
1. Bringing a long range measuring into action
2. Big target is easy to aim
3. High reflection rate by silver coated prism
4. Un-foggy by silver coated prism and sealed structure
5. Great vertical axis by high accurated machining

*Case: Plastic case

SUITABLE TRIPODS: PMW/PGF Tripods
SPECIFICATIONS

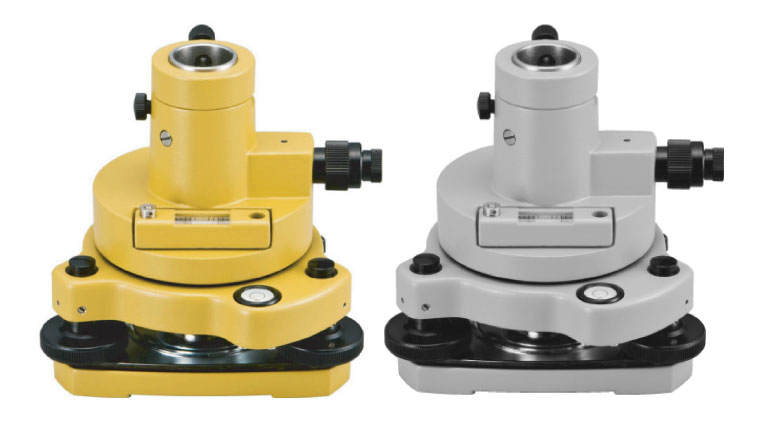

With Tribrach and Height adaptor set
Code No. Model Prism size Offset Height
movable
range		 Sensitivity Sutable
Color
- TG-2500S 2.5 inch (63.5mm) 0/30mm 23mm

Round type: 8'/2mm
Tubular type: 60'/2mm

 Yellow
- TG-2500G 2.5 inch (63.5mm) 0/30mm 23mm

Round type: 8'/2mm
Tubular type: 60'/2mm

 Gray


SPECIFICATIONS

For pole use set
Code No. Model Prism size Offset Prism
Center
height		 Adapter
shape		 Suitable pole
- TG-2500SP 2.5 inch (63.5mm) 0/30mm 5/8" thread hole Whole Myzox
Prism pole
- TG-2500GP 2.5 inch (63.5mm) 0/30mm 5/8" thread hole Whole Myzox
Prism pole
