SURVEYING / LASER INSTRUMENT   ▸   Line Laser

REAL GREEN LINE LASER G-410SR

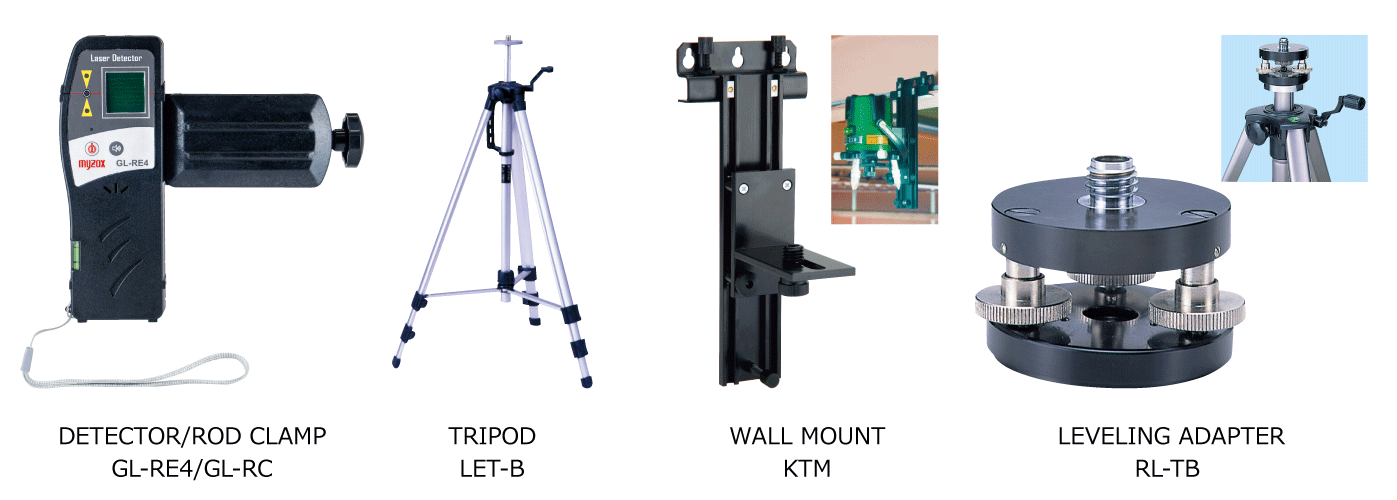

OPTIONAL ACCESSORIES

SPECIFICATIONS
Code No. 222886
Model G-410SR
Laser source Visible green laser
Wavelength

510 ~ 520nm / Line

650nm / Down point
Line width Less than 2.5mm per 5m
Accuracy for H/V line ±1.0mm/7.5m
Accuracy for upper cross ±1.0mm/5m
Accuracy for down point ±1.0mm/1m
Down point diameter ±1.5mmφ/m
Leveling 2-Axis gimbal system
Self leveling range ±1.5°
Power

AA battery x 4 (Alkaline / NiMH)

AC adapter
Operating Time(all lines) approx. 2h
Operating Temperature -5 ~ +40°C
IEC Laser Class 2M
Dimensions L116 X W115 X H195mm
Weight(without batteries) approx. 1,250g
IP Protection IP54

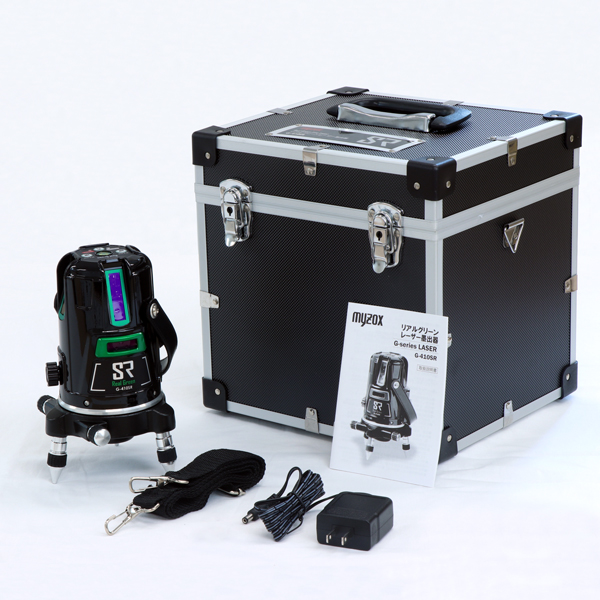

STANDARD ACCESSORIES


-Carrying case

-Shoulder belt for carrying case

-AC adapter

-Manual
