Robust Model

YOROI

YR6S1500MG

Drones bring future of human & industries.

Drones will bring an industrial revolution of the sky. Carbon shell structure has superb operability & stability, and large industrial drones will help crop-spraying at huge agricultural land, material handling to remote islands & affected areas etc.

carbon
CARBON SHELL
BODY

Tough and light body with CFRP material.

drone
DETACHABLE
ARM

Foldable and detachable arm for transportation.

bug
HEAVY
LOADING

Various kinds of materials can be carried.

battery
INTELLIGENT
BATTERY

Manageable battery capacity by smart indicator.

cloud
WATER &
DUST PROOF

Endurable structure to the bad weather.

CUSTOMIZE EXAMPLES

YOROI’s robust body is useful to crop-surveying, material handing and surveying.

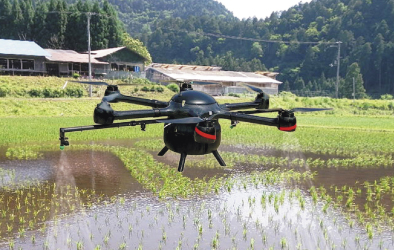

Crop-spraying


Loading 16L container and control spraying flight. Possible to autonomous flight and auto-spraying system.

Material handling


Possible to stable flight with heavy load (30kg) with vibration control system.

3D & photo surveying


Loading laser scanner, and make 3D scanning data in real time. Possible to check the 3D data at job site.

Mobile base station
for disaster


Loading mobile base station (8kg), and use emergency & inspection when disaster happens. Helpful to search missing people buries under snow or sands.

CASE STUDY

SoftBank Corp.

Loading mobile base station (8kg) in order to search missing people at the snow mountains. Although the environment of jobsite was very harsh, our drone meets very high requirement level with water & dust protection, high stability flight and robust body by carbon integrated body structure.
In December 2016, this customized drone tested at “Hokkaido” (heavy snowing area), and it was success to 100m height with 8kg mobile base station. Also, autonomous flight test with same condition was tested in March 2017.

yoroi_performance1
yoroi_performance1_sp

The Japan Atomic Power Company

Loading a radioactive tester and an infrared camera on the drone in order to inspect areas where people can’t enter, especially for the nuclear power plant. When the disaster happens, control the drone remotely from inside of special vehicles. Measure the radiation value, and check & record the captured images.

yoroi_performance2
yoroi_performance2_sp

SPECIFICATIONS

YR6S1500MG
Size (WxDxH) 1,592mm×1,393mm×693~793mm
Diagonal motor distance 1,500mm
Material Carbon fiber (CFRP)
Weight (without battery) 11.4kg
Battery loading Max. 2pcs
Motors 6
Propeller size 28 inch x propeller pitch 8°
Max. payload (battery x 1) 9kg *Over 25kg available by customizing
Max. altitude limit 2,500m
Max. flying speed 60km/h
Max. operating wind speed 10m/s
Water & dust protection Body : IP34, Motor : IP34
Motor KV value 120
Motor Max. driving force 14kg/pc
Battery capacity 18,000mAh
Battery type 12S LiPo Intelligent battery
Battery weight 4.5kg
Battery Max. operating time 18 min.
Accessories Carrying case / Standard work skid
