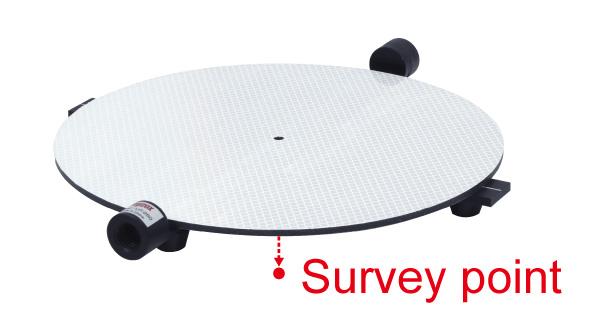

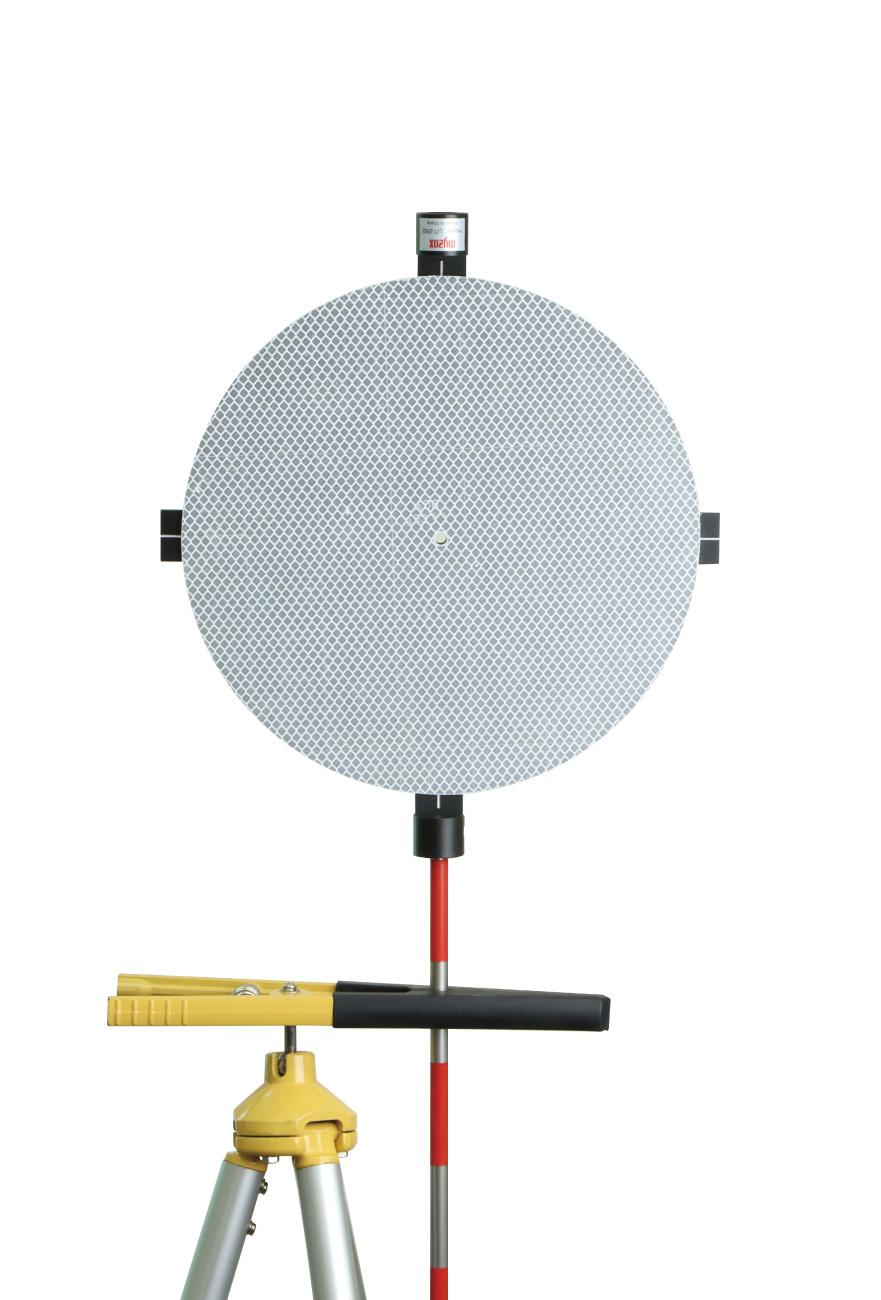

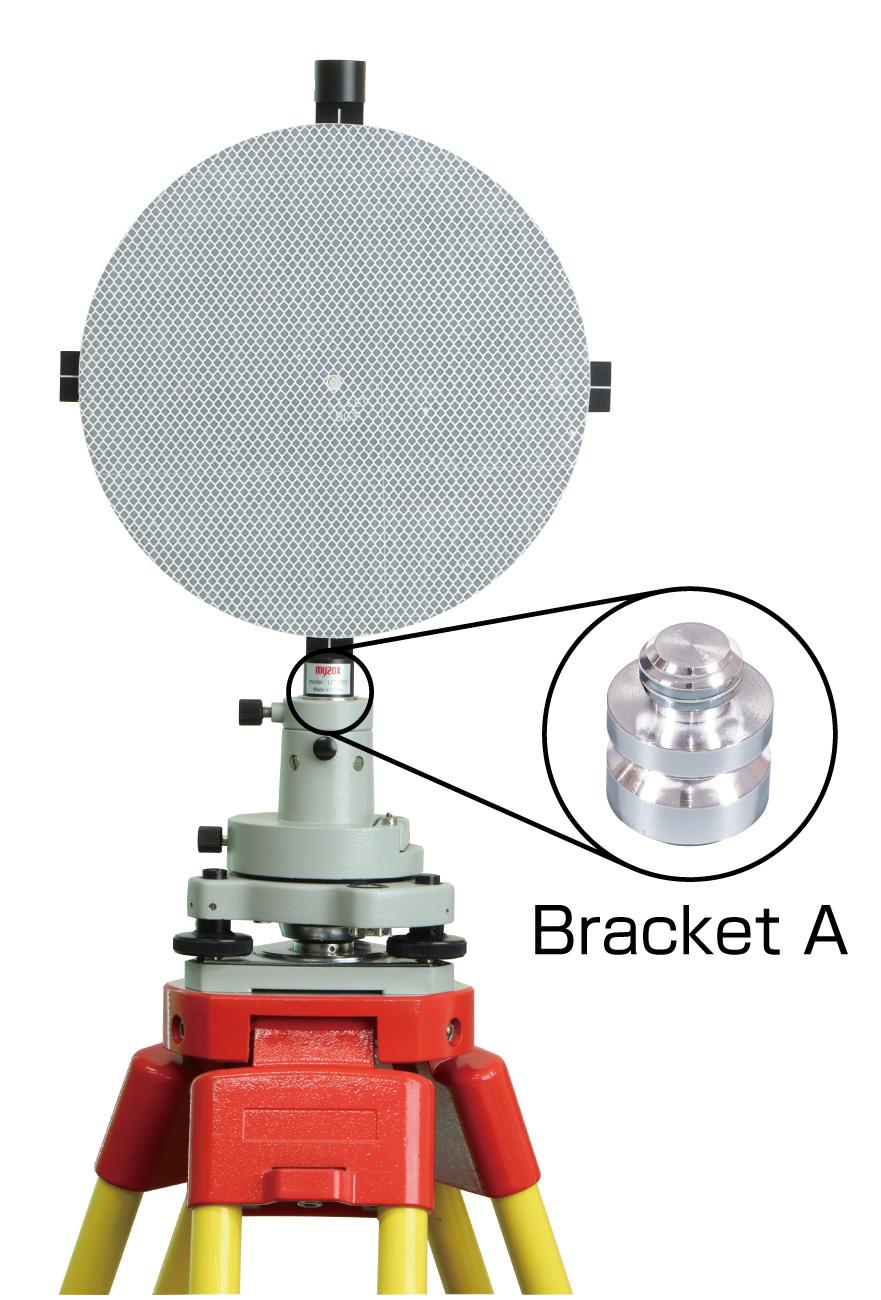

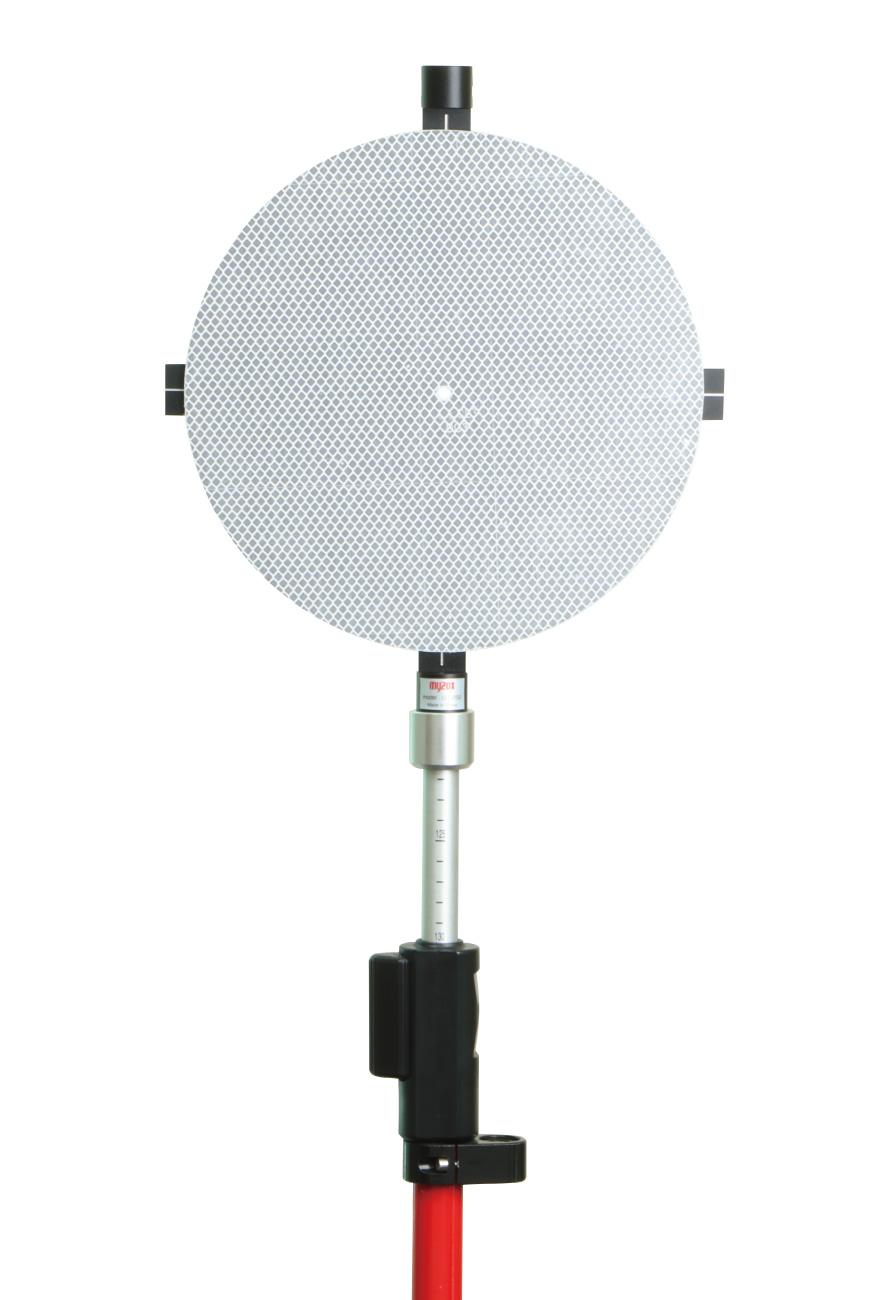

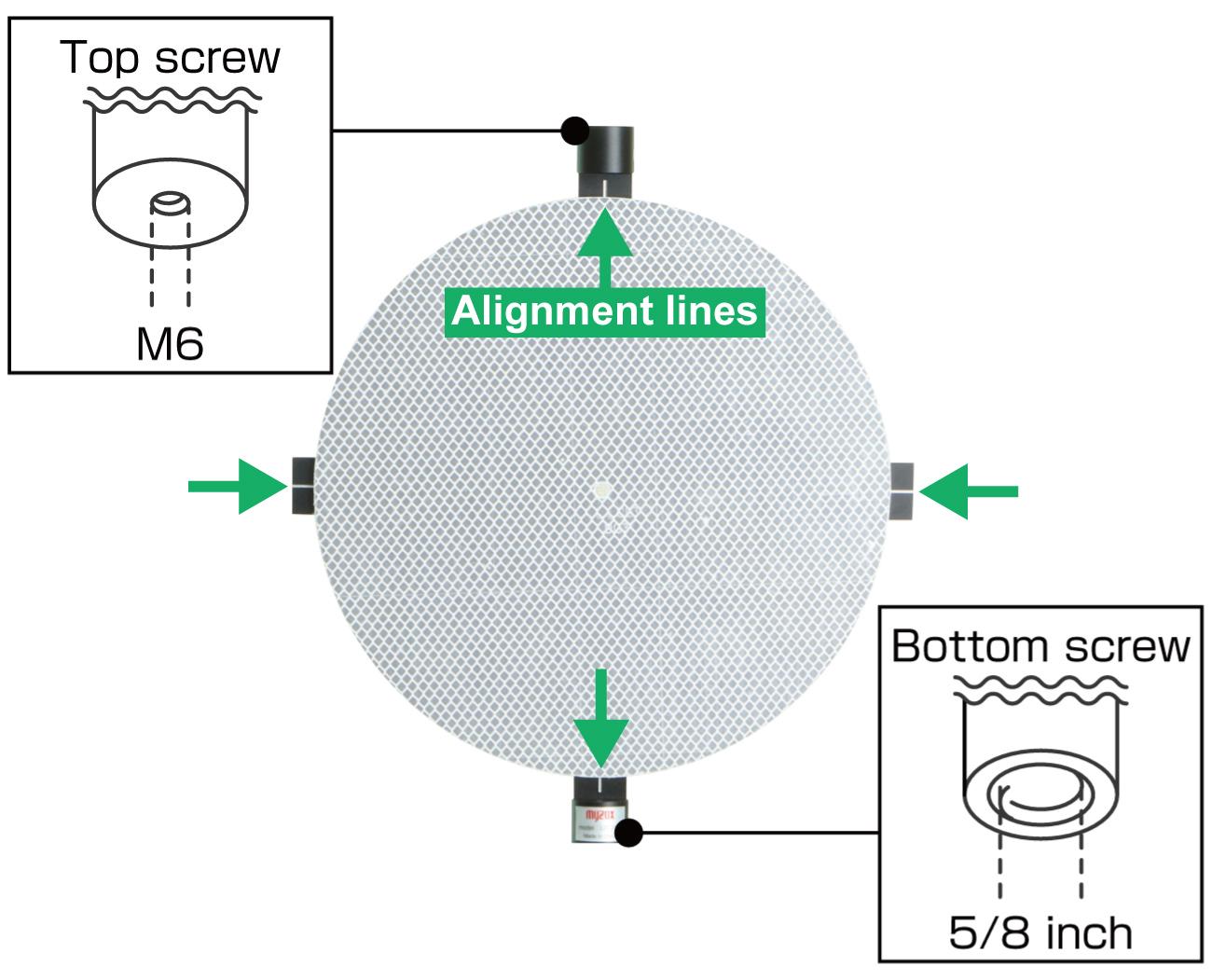

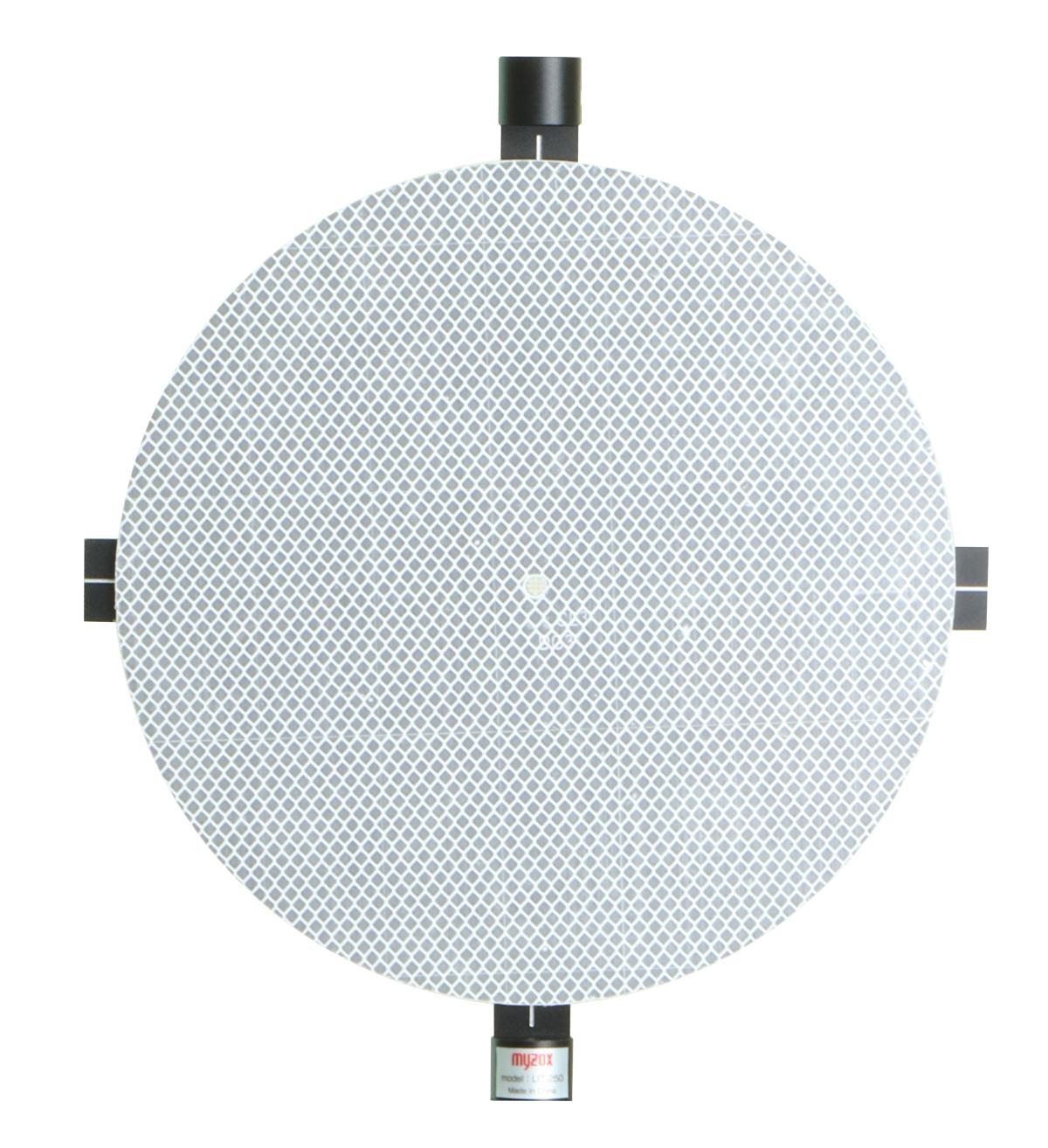

Reflective Target for LiDAR LIT-250 Ideal for SLAM LiDAR, drone mapping, precision point cloud alignment. Specifications Target size : 250mm dia. Dimensions : 310 x 33.9 x 270mm Weight : 560g Top screw : M6 female Bottom screw : 5/8 inch female Placing reflective targets on known points in SLAM LiDAR surveys makes post-processing correction easier. They also help align multiple point cloud datasets accurately, resulting in high-precision outcomes.  Operation confirmed : FARO Orbis Premium, Emesent Hovermap ST-X/ST FEATURES - Compatible with pin poles via M6 female screw - Compatible with poles via 5/8 inch female screw - Alignment lines on all sides of the target plate - Made with high-reflectivity material (front side only) As a ground target It can be securely placed flat on the ground, making it suitable for use as a ground control target in drone surveys. The survey point is visible through the center hole.   *Pole is not included DM Pin Pole Prism Pole Tripod Tribrach + Bracket A Please let us know if you are interested in our products. We will be happy to send you the data of images/pictures in this e-newsletter to help your sales promotion.  To unsbscribe from our newsletter, please contact the following email address: international@myzox.co.jp
