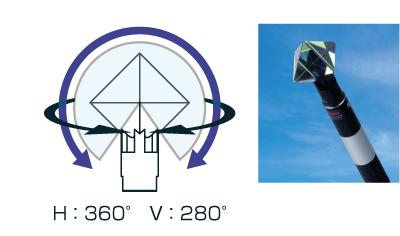

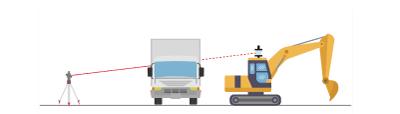

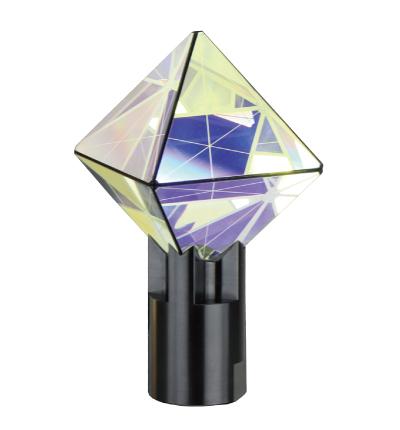

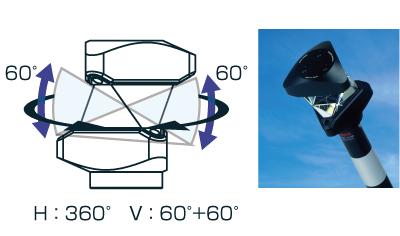

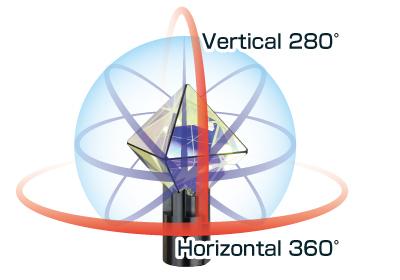

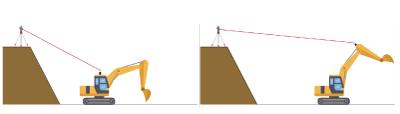

3D Tracking Prism KIRA640   Specifications Prism constant : -10mm Prism height : 60mm Targetable angle : H 360°  V 280°  Screw : 5/8 inch female Dimensions : 67 x 67 x 93mm Weight : approx. 158g FEATURES Industry-first* omnidirectional prism for machine guidance Ultra-wide tracking range with 360° horizontal and 280° vertical coverage. *Based on our research. Conventional 360° prism Tracking loss may occur when prism elements are hidden depending on the angle. KIRA640 Prism elements on the top surface significantly reduce the risk of tracking loss. In machine guidance excavation using a total station, laser signals may be blocked by machine movement, trucks, or site personnel. Installing the total station at an elevated position helps reduce this risk, but with conventional 360° prisms, steep laser incidence angles can lower reflectivity and interrupt tracking. KIRA640 can be clearly sighted even at elevated positions, avoiding blockage and helping work continue without stopping. Please let us know if you are interested in our products. We will be happy to send you the data of images/pictures in this e-newsletter to help your sales promotion.  To unsbscribe from our newsletter, please contact the following email address: international@myzox.co.jp
