Product Bulletin November 2025 issue

• Date

  November 20, 2025

• Category

  PRODUCT BULLETIN 

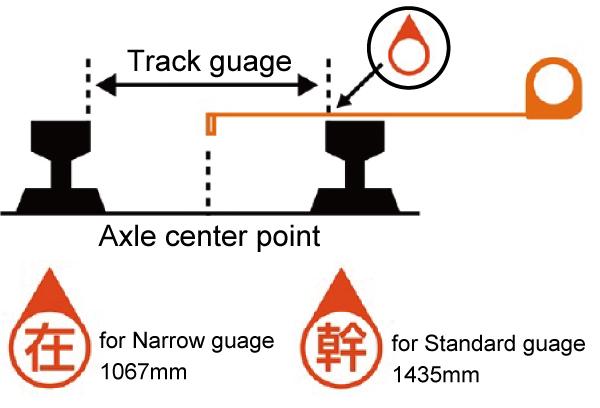

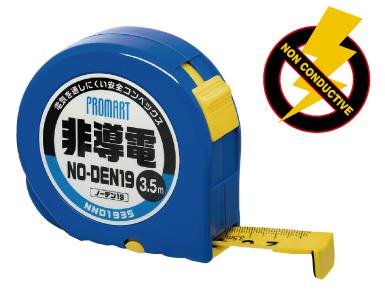

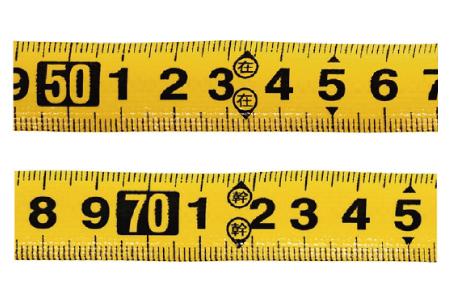

Non Conductive Measuring Tape NND1935 Specifications Tape length : 3.5m Tape width : 19mm Graduation : one side Weight : 160g FEATURES Withstands up to 3000V Successfully passed high-voltage testing for reliable insulation performance. High-accuracy fiber tape Equivalent to JIS Class 1 precision, ensuring accurate measurements. Improved tape rigidity and durability Enhanced straightness and strength compared with previous model. Hook protector Prevents hook damage and accidental detachment. Reflective nameplate Provides better visibility and helps prevent loss. Stainless steel spring Ensures smooth operation and reduces the risk of spring failure. Railway Track Measurement Mark (Based on Japanese Track Gauges) This tape measure includes special marks designed for railway track measurement work. When the mark is aligned with the inner edge of the rail, it corresponds to a measurement taken from the track center line (axle center point). 在 : positioned at 533.5mm, equivalent to half of 1067mm (narrow guage)  幹 : positioned at 717.5mm, equivalent to half of 1435mm (standard guage)   Please let us know if you are interested in our products. We will be happy to send you the data of images/pictures in this product bulletin to help your sales promotion.  To unsubscribe from our newsletter, please contact the following email address: international@myzox.co.jp
