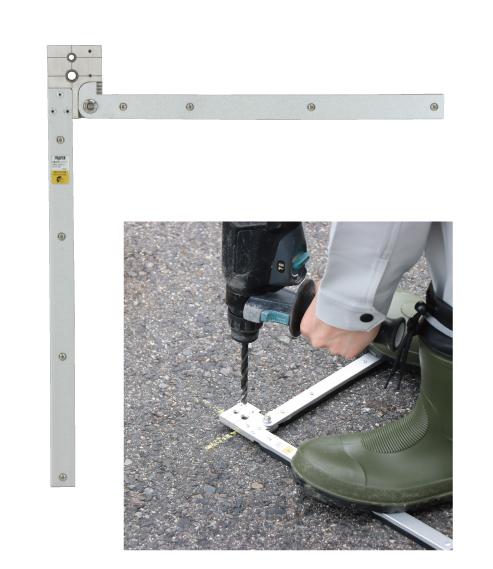

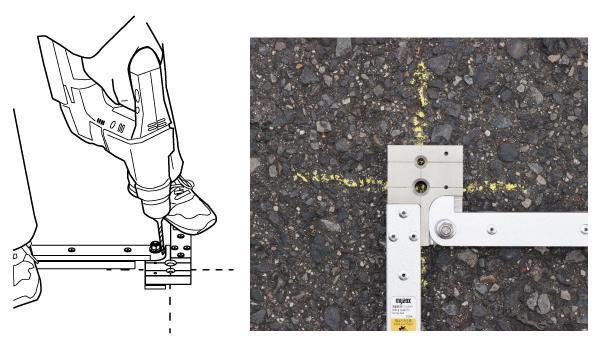

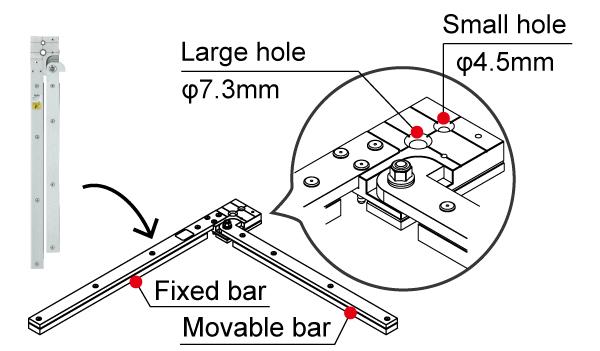

Drilling Guide for Survey Nail DGNA A simple, effective guide to keep your drill bit on target. It holds the bit steady while drilling, reducing slip caused by drill force. Specifications Hole diameter : S 4.5mm dia.  L 7.3mm dia. Drill bit size : S 3.5 - 4.3mm dia.  L 6.5mm dia. Nail size : S 4&5mm dia.  L 7mm dia. Maximum opening angle : 90 degree Dimensions : 55 x 365 x 22mm Weight : 600g How to use 1. Mark a point or a line on the asphalt or concrete where you want to drive in the survey nail. 2. Open the movable bar to the fitting angle to match your footing, and align the small or large hole with the intersection of the marked point or lines. 3. Step on the fixed bar and movable bar and make sure not to move the main body, then use a drill to make a pilot hole. Please let us know if you are interested in our products. We will be happy to send you the data of images/pictures in this product bulletin to help your sales promotion.  To unsubscribe from our newsletter, please contact the following email address: international@myzox.co.jp
