LASERS
Rotating Lasers

DIGITAL LASER DETECTOR D-RE2
  • Leaflet

■Features
1. Digital Readout
2. Selectable Resolution
3. 0 set function
3. Wide Detective Window

FEATURES

Selectable 5 grade resolution from newly added 0.5mm to 10.0mm

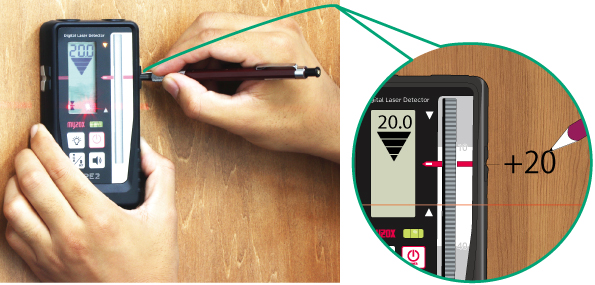

0 set function : Setting any height as a datum point (0 poimt)





SPECIFICATIONS
Code No. 222829
Model D-RE2/D-RC
Detective height 90mm(-30~60mm)
Numeric readout height

80mm(-25~55mm)

Detective angle ±45°
Detective wavelength 450nm~800nm
Working range

1~300m radius(when using MJ-300)

Resolution 0.5 / 1.0 / 2.0 / 5.0 / 10.0mm
Marking notch 41mm from top edge
0 set available range 50mm
Dimensions 135 x 69 x 25mm
Weight approx. 175g(excluding battery)
Power

AA battery×1

International protenction IP67(Dust & waterproof)
Battery life approx.45 hours
Operating temperature -20~+70℃
Storage temperature

-40~+70℃



CONTENTS



-Detector D-RE2

-Clamp D-RC (with circular level)

-AA alkaline battery

-Manual
