PRISMS
Mini Prisms

1 INCH (25mm) PRISM FOR CORNER USE

■Features
1. Compact body
2. Can be used as corner prism
3. Easy to slide on the pole by "Quick release" button
4. Prism part can be moved 180 degree
5. Easy visible circular level

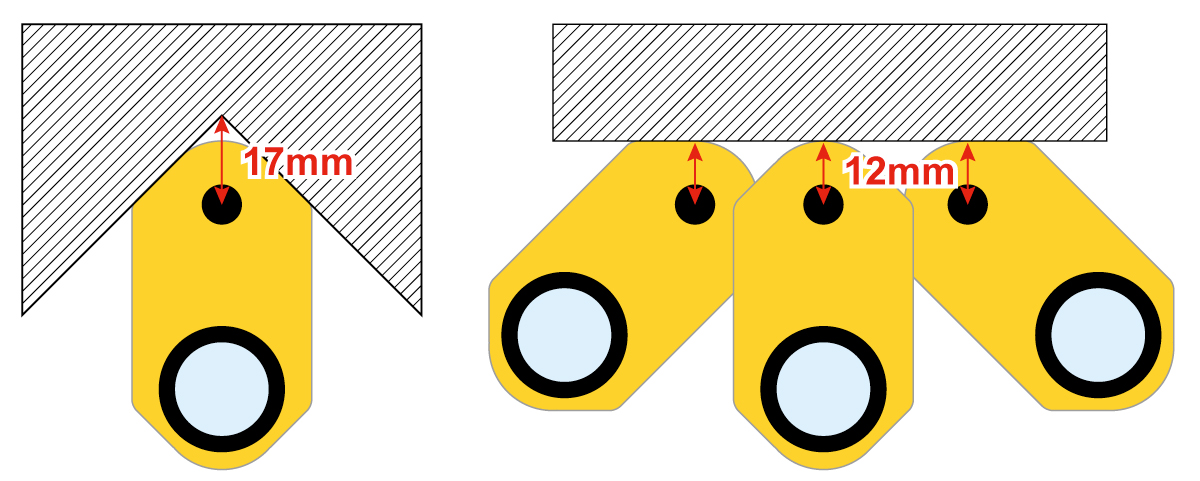

Offset

    This prism is called Corner Prism or Wall Prism.
    The offeset is always constant at corner or against wall.

SPECIFICATIONS
Code No. Model Target Probe Pole Size
217891 MG-1000SP Detachable 9mm dia. 35 x 45 x 68mm
221408 MG-1000SPT Fixture 9mm dia. 45.5 x 45 x 68mm

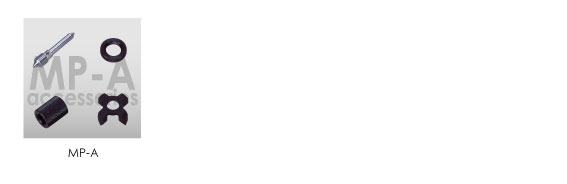

OPTIONAL ACCESSORIES
