Monitoring Prisms


Suitable for
  • Suitable for Vast Field
  • Suitable for Measure The Height Difference
  • Suitable for Railway
  • Suitable for Total Station

LED30P helps at night works, mining site or long distance works so on.
Because LED lights indicate where the prism is by flashing.
It's easy to change the brightness and frequency by switching the button at back side of prism target.

Selction of Brightness: 100%, 70%, 40%, 20%
Frequency of Flashing: 1hz, 3hz, 6hz, and lighting

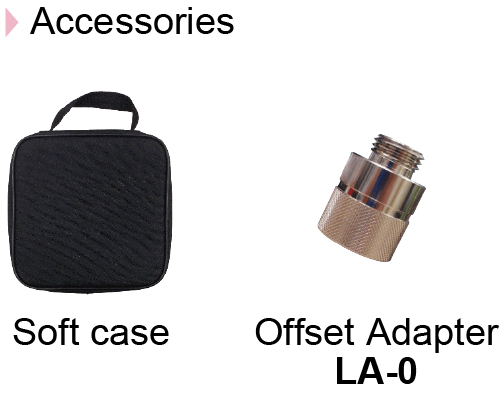

When setting as prism constant 0, it must use with the attached adapter LA-0.


Code No. Model Offset Size Battery
240021 LED30P 0 / 30mm 178 x 178 x 50mm AAA x 2
