DIGITAL LEVEL DGL series

MEASURING

Leaflet

STANDARDS

IP PROTECTION

Suitable for

■Features
1. Can be attached by magnet buttom
2. Display will be up-side down if using up-side down
3. Beep when 0°,45°,90°
4. Display will be also upside down when using upside down

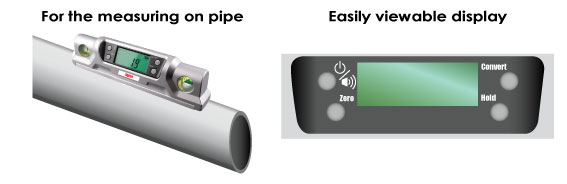

5. V-ditch and magnet in bottom part help to measure metal frame or pipe.
6. Numerical number on display can be holded by "Hold" button.

SPECIFICATIONS
Code No. 218756 - -
Model DGL-C DGL-L DGL-XL
Display mode Angle(°), Slope(%), Pit(IN/FT)
Min. display 0.1°, 0.1%
Digital measuring accuracy ±0.1° ±0.1° at Level/ plumb, ±0.2°at other angle  ±0.05° at Level/ plumb, ±0.1°at other angle
Vial accuracy ±0.5mm/m (±0.029°)
Power source 2x1.5V (AAA batteries)
Length 210mm 600mm 1,200mm
Weight 237g (incl.batteries) - -
Working temperature 0 to 40°C 0 to 40°C -5 to 40°C
Laser wavelength N/A 650nm 650nm
Laser class

N/A

3A

2
