AUTOMATIC ROTATING LASER MJ-300 SERIES

LASERS

â– Features
1. Simple operation
2. Light & Compact body
3. IP54
4. Wide range usage in 600m diameter

Leaflet

STANDARDS

IP PROTECTION

Dust-proof and Splash-proof IP54(JIS C0920)

Suitable for

  • Suitable for Rotating Laser

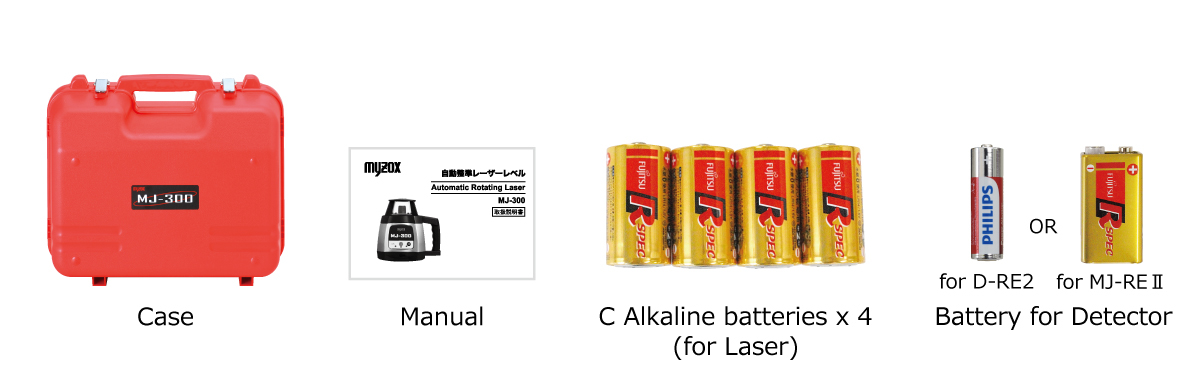

STANDARD ACCESSORIES



SPECIFICATIONS
Laser source Visible red laser diode
Wevelength 635nm (line)
Laser class Class 3R
Measuring range 0.5~300m (radius)
Accuracy H:±15" (±0.75mm/10m)
Self-leveling range ±3.5°
Power C Alkaline batteries x 4
Operating time Approx. 20 hours
Tripod thread 5/8 inch x 11 ridges
Dimensions approx. 205 x 155 x 205mm
Weight 1.85kg (without batteries)
IP IP54

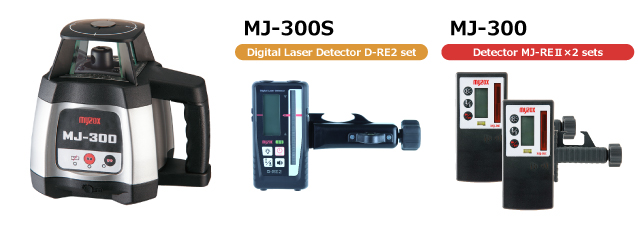

Select a Detector set from D-RE or MJ-REII×2

D-RE MJ-REII
Detective width 90mm(-30~60mm) 48mm(-24~24mm)
Numeric readout height 80mm(-25~55mm) -
Detective wavelength 450~800nm 635nm
Accuracy ±1.0 / ±2.0 /  ±5.0 / ±10.0mm ±1.0 / ±2.5mm
Auto power off approx. 30minutes approx. 7minutes
Dust & waterproof IP67 -
Demensions 135 x 69 x 25mm 136 x 69 x 25mm
Weight approx. 175g (without batteries) approx. 170g (without batteries)







Code No. Product Name Model
221957 Automatic Rotating Laser / D-RE set MJ-300S

221958

Digital Laser Detector with Clamp D-RE/D-RC
221959

Digital Laser Detector

D-RE

221960 Clamp for D-RE D-RC
219853 Automatic Rotating Laser / MJ-REII set MJ-300
220158 Detector with Clamp MJ-REII/MJ-RCII
21787201

Detector

MJ-REII

21787301 Clamp for MJ-REII MJ-RCII
