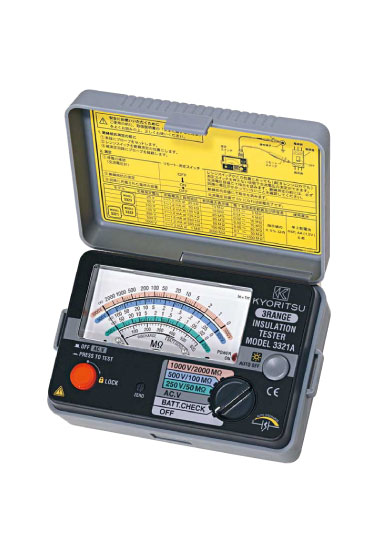

3RANGES INSULATING-RESISTANCE TESTER

MEASURING

STANDARDS

IP PROTECTION

Suitable for

■Features
1. AC Voltmeter with linear, easy-to read scales
2. Auto-discharge function
3. Color-coded scales for ease reading
4. Back light function to facilitate working at dimly illuminated locations
5. Test lead set with remote control switch
6. Shoulder strap for hands free

SPECIFICATIONS
Code No. Model Range Weight Rated Voltage Effective Measuring Ranges Dimensions
(L)x(W)x(D)mm
211231 3321A 3ranges 520g 250V(50MΩ)
500V(100MΩ)
1000V(2000MΩ)
0.05~20MΩ(50V)
0.1~50MΩ(500V)
2~1000MΩ(1000V)
105x158x70
217829 3322A 3ranges 520g 125V(20MΩ)
250V(50MΩ)
500V(100MΩ)
0.02~10MΩ(125V)
0.05~20MΩ(250V)
0.1~50MMΩ(500V)
105x158x70
217830 3323A 3ranges 520g 25V(10MΩ)
50V(10MΩ)
100V(20MΩ)
0.01~5MΩ(25V)
0.01~5MΩ(50V)
0.02~10MΩ(100V)
105x158x70
