ALUMINIUM LEVELING STAFF ALG series 5M/4M/3M/2M
  • Leaflet

■Features
1. Most popular model and world's standard
2. Clear and durable graduation print
3. Rigid square shape stopper button
4. 1mm pitch reading on the back
(except for ALG-44, ALG-44E, ALG-44EB)
5. Red center line help to collimate

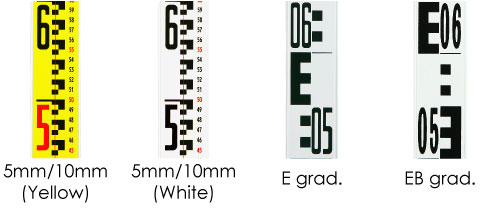

(5mm/10mm graduation model)

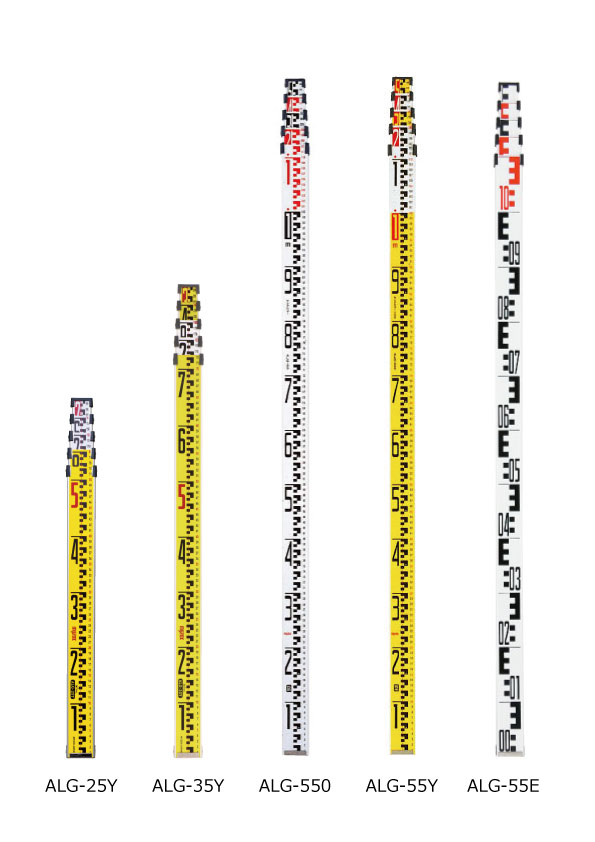

SPECIFICATIONS

5m x 5sections

Code No. Model Full closed Weight Circular Level Button Graduation
front back
240051 ALG-550 1,245mm 1.7kg SA-60 MG-04 Metric W 0 UP
011005 ALG-55Y 1,245mm 1.7kg SA-60 MG-04 Metric YW Photo / Inside
091551 ALG-55E 1,245mm 1.7kg SA-60 MG-04 E face Inside
240028 ALG-55E2 1,245mm 1.7kg SA-60 MG-04 E face 0 UP
091545 ALG-55EB 1,245mm 1.7kg SA-60 MG-04 EB face Inside



4m x 4sections

Code No. Model Full closed Weight Circular Level Button Graduation
front back
091553 ALG-44 1,216mm 1.44kg SA-60 MG-04 Metric W -
240052 ALG-440 1,216mm 1.44kg SA-60 MG-04 Metric W 0 UP
091554 ALG-44E 1,216mm 1.44kg SA-60 MG-04 E face -
091546 ALG-44EB 1,245mm 1.44kg SA-60 MG-04 EB face -



3m x 5sections
Code No. Model Full closed Weight Circular Level Button Graduation
front back
222733 ALG-35Y 845mm 1.20kg SA-60 MG-02A Metric YW Inside



2m x 5sections

Code No. Model Full closed Weight Circular Level Button Graduation
front back
221495 ALG-25Y 645mm 0.9kg SA-60 MG-02A Metric YW Inside
222056 ALG-25E2 645mm 0.9kg SA-60 MG-02A E face 0 UP
